Visual Positioning UV Printer – AI Camera Auto-Align Flatbed UV Printer
0.1mm Precision | CCD Camera Recognition | No Jigs, No Manual Setup
MTuTech’s visual positioning UV printer range uses a high-precision AI camera mounted on the print carriage to scan substrates, identify object position and orientation, and auto-align print placement in real time. Load 10, 50, or 200 items randomly on the print bed — the camera sees each one, the software aligns each design, and the printer delivers 0.1mm registration accuracy across every piece. No jigs. No test prints. No wasted blanks. Available in small format (900×600mm) through large industrial (2500×1300mm) configurations.
- AI camera scans unlimited items in one pass
- 0.1mm registration accuracy on pre-cut and irregular substrates
- Works on warped, transparent, and pre-printed surfaces
- Cuts setup time by up to 80% vs standard UV printers
- 1-Year warranty + free operator training + worldwide shipping
- Factory-direct pricing from $5,500 USD
2,000+ MTuTech machines installed across 50+ countries | 16 years of UV printing innovation
What Is a Visual Positioning UV Printer?
A visual positioning UV printer is a flatbed UV printer equipped with a CCD or AI camera that automatically scans the print bed, identifies the position, shape, and orientation of each object or substrate, and adjusts the print head to align the design perfectly — without jigs, manual placement, or test prints. This technology enables 0.1mm registration accuracy on pre-cut items, irregular shapes, warped materials, and pre-printed surfaces, making it the preferred production solution for promotional product shops, packaging printers, electronics manufacturers, and signage companies handling high-mix, low-volume orders.
Trusted by Commercial Print Shops Worldwide
🏆 2,000+ machines installed
🌍 50+ countries served
⚙️ 16 years UV manufacturing
⭐ 0.1mm registration accuracy
🛠️ 24/7 WhatsApp support
🚚 Worldwide shipping (DDP + FOB)

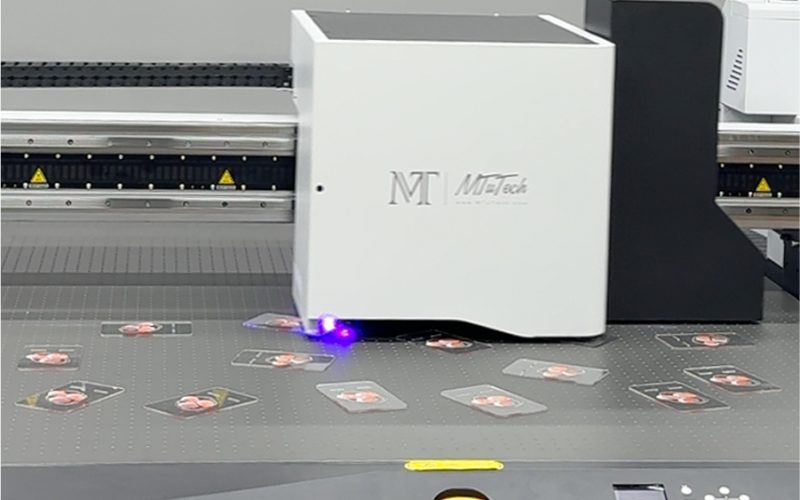

How Visual Positioning UV Printers Work
Visual positioning technology transforms a standard UV printer into an intelligent production system. Here’s the exact 5-step workflow operators follow every day:
Step
Process
1
Design Setup in RIP Software
Load your artwork into the RIP software (PhotoPRINT or Maintop included). Set ink layers, color profiles, and finishing effects like varnish or embossing.
2
Random Placement on Print Bed
Place items anywhere on the 900×600mm (or larger) print bed. No jigs, no alignment marks, no masking tape — just drop and go. Load 10 phone cases, 50 keychains, or 200 coins in any arrangement.
3
AI Camera Scans Bed
The high-precision CCD camera scans the entire print bed in under 5 seconds, capturing each object’s position, shape, rotation, and surface features — even on transparent acrylic or pre-printed substrates.
4
Software Auto-Alignment
Proprietary software analyzes camera data and maps each design to its target substrate with sub-0.1mm precision. Rotated items get rotated artwork. Offset items get offset artwork. Every time.
5
Print + Instant UV Cure
The print head lays down CMYK + White + Varnish in sequence, with LED UV lamps curing each layer instantly. First-pass success rate exceeds 95% — no test prints, no reprints, no wasted substrates.
Core Features of MTuTech Visual Positioning UV Printers
3D Texture Printing
Stack multiple ink layers to create tactile embossed effects, Braille, leather grain, and brushstroke textures — a premium upsell that adds 30–50% to order value.
AI Visual Positioning System
High-precision CCD camera scans substrates and auto-aligns print placement — works on transparent acrylic, warped wood, pre-printed packaging, and irregular shapes.
8-Color Ink System (CMYK + Lc/Lm/Lk/Llk + W + V)
Vibrant color on dark substrates with white underbase, plus glossy varnish finishes — all in a single pass with extended gamut for pantone accuracy.
Multiple Printhead Configurations
Choose 1, 2, or 3× Epson i3200 or i1600 printheads based on your production volume. Scale up within the same chassis as your business grows.
Custom Jig Compatibility
Print challenging substrates using our custom jigs for phone cases, USB drives, coins, badges, and irregular shapes — even with camera positioning active.
Industrial Build, Compact Footprint
Reinforced steel frame rated for 50,000 operating hours. Runs out of the crate with minimal assembly — no specialist installation required.
Specifications
Printhead
Epson i3200 / i1600 printheads (configurable 1–3 heads)
Print Area
900 × 600 mm (standard) | up to 2500 × 1300 mm (large format models)
Max Print Speed
15 m²/h (draft mode) | 8–10 m²/h production quality
Max Print Height
180 mm (7″)
Registration Accuracy
0.1 mm (±0.05 mm) with CCD camera positioning
Camera Scan Speed
Full bed scan in under 5 seconds
Ink Colors
8 channels: CMYK + Lc/Lm/Lk/Llk + White + Varnish
Cylinder Print Diameter
45–110 mm (1.77″ – 4.33″) with rotary attachment
Visual Positioning UV Printer Price & Model Options
Visual positioning UV printer price varies by print size, printhead configuration, and camera system tier. Below is transparent factory-direct pricing across our complete model range:
| Model | Print Area | Camera System | Starting Price (USD) |
|---|---|---|---|
| MT-UV 9060 Pro | 900 × 600 mm | CCD Visual Positioning | $5,500 – $8,500 |
| MT-UV 1315 | 1300 × 1500 mm | AI Camera (Optional) | $9,500 – $13,500 |
| MT-UV 2513 | 2500 × 1300 mm | Multi-Camera Array | $18,000 – $28,000 |
| MT-UV 2000HR Hybrid | 2000 mm wide | AI Vision + Roll Media | $22,000 – $35,000 |
What's Included with Every Visual Positioning UV Printer
- Pre-calibrated CCD / AI camera system
- 1-Year manufacturer warranty (printheads, mainboard, camera)
- Free remote installation + operator training
- Starter ink kit: CMYK + White + Varnish (~5 liters total)
- Licensed RIP software (PhotoPRINT or Maintop)
- Custom jigs package for common substrates
- 24/7 technical support via WhatsApp and email
- Worldwide shipping (DDP or FOB Shanghai options available)
Visual Positioning UV Printer Models — Choose by Print Size
MTuTech offers visual positioning across four model sizes, from compact A1 benchtop units to large-format industrial flatbeds. All models share the same CCD camera technology and RIP software.
| Model | Description | Link |
|---|---|---|
| MT-UV 9060 Pro — Small Format (A1) | 900 × 600 mm print area. Ideal for promotional products, phone cases, small signage, custom gifts, and short-run personalization. 3× Epson i3200 printheads deliver 15 m²/h. Starts at $5,500 USD. | View MT-UV 9060 Pro |
| MT-UV 1315 — Mid Format | 1300 × 1500 mm print area. Best for mid-size signage, plaques, home décor panels, and batch-run promotional production. Optional AI camera upgrade for visual positioning. | View MT-UV 1315 |
| MT-UV 2513 — Large Format Industrial | 2500 × 1300 mm print area. Built for architectural signage, exhibition panels, furniture printing, and high-volume industrial applications. Multi-camera array tracks entire bed. | View MT-UV 2513 |
| MT-UV 2000HR — Large Format Hybrid | Hybrid rigid + roll-media printer with 2000mm print width. Runs flexible banners AND rigid boards in the same machine. 3–16× Ricoh Gen5/Gen6 printheads for industrial throughput. | View MT-UV 2000HR Hybrid |
Visual Positioning UV Printer vs Standard UV Printer
Buyers often ask: “Is the visual positioning upgrade worth it?”
Here’s the honest comparison of what changes when you add CCD camera technology to your UV printer:
| Capability | Standard UV Printer | Visual Positioning UV Printer |
|---|---|---|
| Setup time per batch | 15–30 minutes (manual placement + test prints) | Under 2 minutes (load and scan) |
| Registration accuracy | 0.5–2mm (depends on jig quality) | 0.1mm automatic |
| Handles pre-cut items | Requires custom jig per shape | Works with any shape, no jig needed |
| Pre-printed substrates | Manual alignment, high error rate | Camera detects existing prints automatically |
| Irregular/warped surfaces | Frequent failure + reprints | Compensates up to 3mm surface variation |
| First-pass success rate | 70–85% | 95%+ |
| Batch-to-batch consistency | Operator-dependent | System-consistent |
| Typical reprint rate | 10–15% of jobs | Under 3% |
| Operator skill required | High (setup expert needed) | Low (anyone can load and start) |
| Best for | High-volume, same-item production | High-mix, low-volume custom work |
| Starting price (our range, USD) | $4,500 | $5,500 |
Should You Upgrade to Visual Positioning?
The math is simple. If your shop runs more than 15 different SKUs per week, handles pre-cut or irregular substrates, or prints on pre-printed items (packaging, labels, phone cases with logos), the $1,000 camera upgrade pays for itself within 2–3 months through saved setup time and avoided reprints. For pure high-volume repetitive jobs, a standard UV printer is still fine.
Small Format Visual Positioning UV Printers
Customization shops printing phone cases or promotional items need compact automatic positioning UV printers. These visual alignment UV printers handle irregular shapes like curved bottles and pre-printed labels. We tested models on already branded packaging where artwork had to land between existing logos. The camera scanned surface features and adjusted print zones automatically. Short run buyers printing 20 to 200 pieces benefit most from this flexibility.
Large Format Precision UV Printers
Signage plants printing 4x8 panels can't tolerate even 1mm drift across large substrates. Precision UV printers with camera alignment track the entire board surface before ink drops. We've worked with shops producing architectural panels where multi layer graphics required perfect overlay. Camera based printing systems maintain accuracy from corner to corner on materials spanning six feet. Industrial décor buyers need this board level control when printing wall murals or exhibition graphics at scale.
Key Performance Advantages of Visual Positioning UV Printers
Commercial print shops that upgrade to visual positioning UV printers report measurable improvements across four critical production metrics:
78% Reduction in Reprint Rate
Camera-based alignment catches substrate misplacement before ink is applied. Our clients average a reprint rate drop from 14% to under 2% within the first month of operation — that’s thousands of dollars in saved materials monthly for high-volume shops.
80% Faster Batch Setup
Manual alignment across 50 phone cases takes 20+ minutes. Visual positioning handles the same batch in under 2 minutes. For shops running 10+ batches daily, that is 3+ hours of reclaimed production time per operator per day.
Zero Jig Requirement
Traditional UV printers require a custom jig for every pre-cut shape — $50 to $300 per jig, plus storage space. Visual positioning eliminates jigs entirely for 90% of use cases, removing both cost and operational complexity.
ROI Within 18 Months
Based on customer data across 500+ installations, visual positioning UV printers pay for the camera upgrade within 6–9 months (via saved setup time + avoided reprints) and recover the full machine investment within 12–18 months of daily commercial operation.
Technical Features of Our Visual Positioning System
Beyond the camera itself, four technical subsystems work together to deliver commercial-grade accuracy and reliability:
CCD Camera & AI Object Recognition
The CCD camera system captures 1920×1080 resolution images of the print bed, processed by proprietary AI software that identifies object edges, shapes, rotation, and even detects pre-existing prints. Registration accuracy is maintained under 0.1mm even on transparent acrylic and glossy surfaces.
Dual-Laser Height Measurement
Two laser sensors continuously measure substrate height as the print head moves, automatically compensating for surface variations up to 3mm. This is critical for pre-cut wood, warped acrylic, and irregular ceramic items that would fail on static-height flatbeds.
Print Area, Thickness & Load Capacity
Industrial-grade bed supports substrates from paper-thin decals to 180mm (7″) thick plaques and trophies. Load capacity reaches 150 pounds without bed flex or alignment drift. Contour cutting compatibility lets you print then route complex shapes in one workflow.
Industries Using Visual Positioning UV Printers
Visual positioning UV printer technology is the production standard across six high-precision industries worldwide:
Promotional Products & Custom Merchandise
Print shops running 300+ personalized items daily — phone cases, USB drives, keychains, corporate gifts — rely on visual positioning to avoid reprints on pre-cut blanks and branded accessories.
Custom Packaging & Labels
Packaging printers need artwork that lands exactly between die-cut windows, fold lines, and existing graphics. CCD camera recognition makes this possible at batch scale without manual registration.
Electronics Manufacturing
Device housings, serial numbers, and certification marks on curved electronics require sub-0.1mm placement. Medical device labeling plants depend on this technology for regulatory traceability code accuracy.
Signage, Trophies & Awards
Trophy engravers and signage companies printing multi-panel architectural graphics use visual positioning to maintain perfect seam alignment across 12+ foot installations.
Ceramics, Tiles & Home Décor
High-end tile printers use visual positioning to compensate for material stretch and feed variations, eliminating visible seams in large-format stone-effect and luxury wood-grain tiles.
Gift Shops & Personalization Studios
Personalization bars in department stores, mall kiosks, and wedding venues run visual positioning UV printers to fulfill “while-you-wait” custom orders without setup delays between customers
What You Can Print with a Visual Positioning UV Printer
- Promotional products – phone cases, keychains, USB drives, pens, lighters
- Awards & recognition – metal plaques, trophies, badges, medals
- Packaging & labels – boxes, bottles, cosmetic containers, jars
- Signage – ADA Braille signs, wayfinding, industrial labels
- Custom gifts – puzzles, coasters, photo frames, personalized items
- Cylindrical items – bottles, tumblers, golf balls, candles (with rotary)
Print on a Wide Range of Substrates
Acrylic • Glass • Metal • Wood • MDF • Plastic • PVC • Leather • Ceramic • Corrugated Board • Foam Board • Phone Cases • USB Drives • Golf Balls • Bottles • And virtually any rigid surface.
Compatible with both flat and cylindrical surface printing.
Cylindrical Printing Capability
The Ultimate Printing Versatility
Wood | Acrylic | Metal | Glass | Slate | Ceramics etc
What You Get: Commercial-Grade Print Quality
From industrial to personalization – UV printing delivers.
Deliver exceptional color accuracy, ensuring images are true to life.
Capturing and recreating detail at its most minute.
Colors that stay bright and beautiful for years.
It can create cleaner, less noisy images.
Visual Positioning UV Printer ROI — How Fast Does It Pay for Itself?
Commercial operators running visual positioning UV printers recover the camera upgrade investment within 6–9 months and the full machine cost within 12–18 months. Here’s a realistic breakdown based on actual customer data:
Scenario 1: Custom Phone Case & Merchandise Shop
- Average revenue per custom phone case: $18
- Daily output with visual positioning: 200 cases (vs 80 with manual setup)
- Setup time saved per batch: 18 minutes × 10 batches/day = 3 hours reclaimed
- Reprint rate: 2% (vs 14% on standard UV printer)
- Monthly material savings from reduced reprints: ~$2,800
- Machine payback on $7,500 setup: 4–6 weeks of full production
Scenario 2: Packaging Printer with Pre-Printed Substrates
- Average order: 500 custom printed boxes at $4 each = $2,000
- Pre-printed substrate alignment: impossible without camera (or requires 30+ min manual registration per batch)
- Orders per week: 8
- Weekly revenue: $16,000
- Weekly gross profit: ~$10,400 (65% margin)
- Machine payback on $7,500 setup: under 2 weeks
Your exact ROI depends on production volume, order mix, and substrate types — but every MTuTech quote includes a custom ROI projection based on YOUR business inputs.
See Visual Positioning UV Printer in Action
Explore more features and start your UV printing journey !
Designed for High Productivity and Print Quality Applications.
Equips with high-precision AI camera to contours and locate - even on transparent materials.
Dual lasers automatically detects and adjusts to accommodate media up to 180mm thick, offering endless printing possibilities.
Allows value for versatile printing options, adding depth and dimension to your designs, making the print results eye-catching and impressive.
Why Choose MTuTech for Visual Positioning UV Printers
Four reasons commercial buyers worldwide choose MTuTech visual positioning UV printers:
Frequently Asked Questions About Visual Positioning UV Printers
What is a visual positioning UV printer?
Yes, visual positioning UV printers work great for pre-cut materials. Our automatic alignment system detects edges perfectly. We print on pre-printed substrates with zero waste. This smart technology saves you time and money.
How much does a visual positioning UV printer cost?
Our camera positioning UV printers achieve 0.1mm precision registration printing. We use high-accuracy UV printer technology for perfect results. Every print aligns exactly where you need it. Your designs come out crisp every time.
What accuracy level does the visual positioning system achieve?
Yes, our position digital printing machines handle large batch production easily. We use automated workflow systems for faster output. Time saving automation keeps your orders on schedule. Our machines run smoothly all day long.
Is a visual positioning UV printer suitable for pre-cut materials?
Our precision UV printers need simple weekly cleaning and checks. We built smart printing technology for easy care. The automated positioning system alerts you about service needs. Regular maintenance keeps your printer running perfectly for years.
Can visual positioning UV printers handle batch production?
Yes. White ink creates a base layer for bright colors. We recommend it for glass or dark plastic bottles. It makes your design pop clearly.
Does the visual positioning UV printer work on transparent materials?
How fast is a visual positioning UV printer?
What maintenance does a visual positioning UV printer require?
Does MTuTech ship visual positioning UV printers worldwide?
Is training included with visual positioning UV printers?
Request Your Custom Visual Positioning UV Printer Quote
Ready to see exact pricing for your configuration? Tell us your print size requirements, substrate types, monthly volume, and destination country — we’ll send a factory-direct quote within 4 business hours, including shipping costs, starter ink kit contents, installation training plan, and available financing terms.
Contact Us
Ready to eliminate jigs and streamline your promotional product printing? Contact MTUTech today for a quote on our visual positioning UV printers and discover how smart camera technology can transform your production workflow.
