UV 9060Pro
Ideal solution for promotional items printing business
Printing Area
Adjustable Printing Height
Printing Speed
Colors
Product Parameters
MT integrates R&D, production, sale and service, and adopts the newest and the most pragmatic technology into printers through cooperating with world famous printer head manufacturers, and software suppliers.
Printhead
3pcs Epson i3200 Printheads
Highlight
Visual Positioning Technology
Print Speed
15㎡/H
Printing Area
900mm x 600mm (35.4″ x 23.6″)
Max.Printing Height
180mm (7″‘)
Print Diameter
45mm-110mm (1.77″ x 4.33″)
Colors
8 colors, CMYKLcLmLkLlk + W + V
Software
RIIN
Applications
Suits for promotional items printing
MT-UV 9060Pro

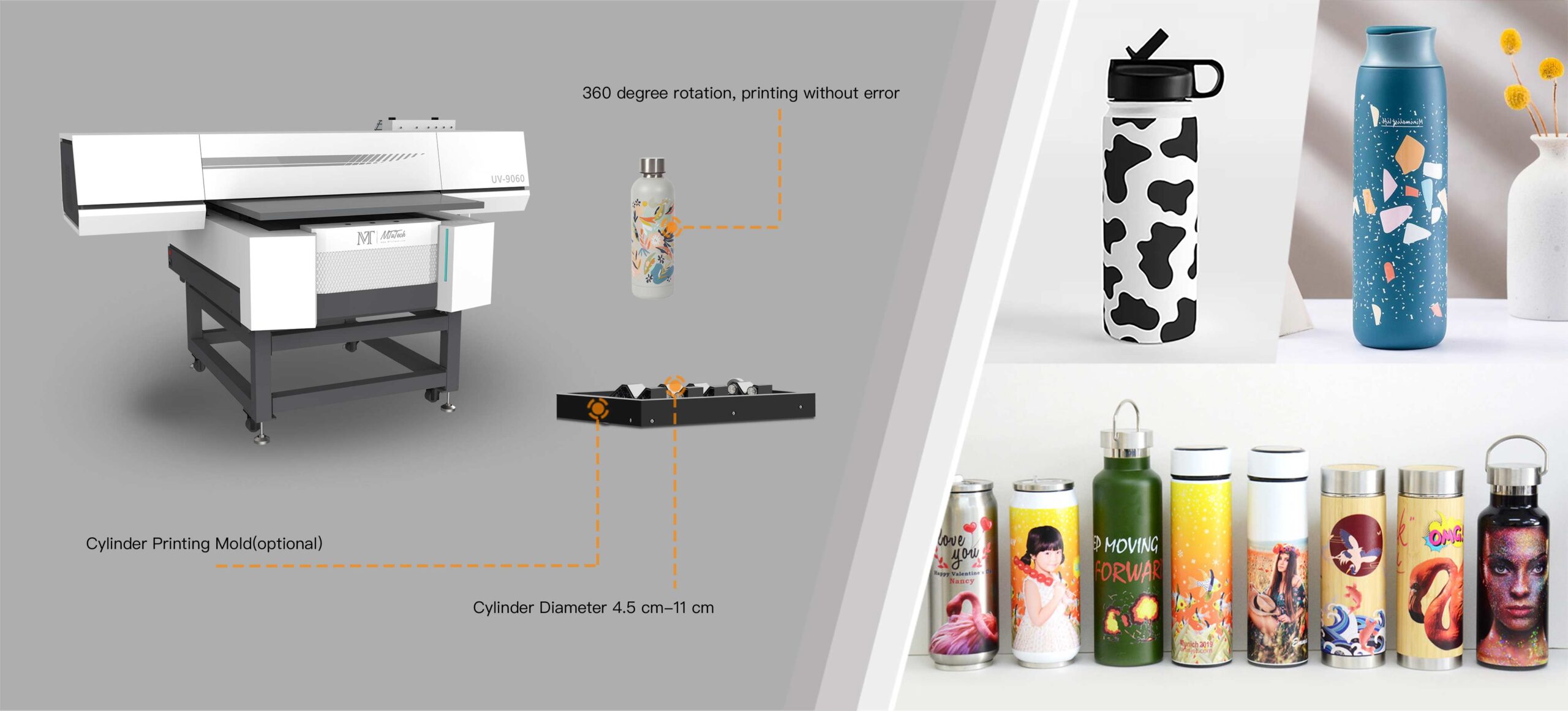

Printing On Cylinder Objects
Help you explore more possibilities
The MT-UV 9060 is adequate for printing on various substrates, including wood, plastic, ceramic, glass, metal, and fabric, creating high-quality, long-lasting designs on all these and more. The printer excels at printing on the surface of wooden items and can be used on flat and tapered surfaces. Printing on flat surfaces is done on the device’s flatbed, while printing on tapered surfaces is done in the tapered items printing compartment on top of the printer.With the MT-UV 9060Pro, you can print on phone cases, keychains, bottles, tumblers, AirPods, CDs, puzzle pieces, headphones, glass, acrylic, wood, MDF, metal materials, cosmetic products, gift boxes, and so much more.
Contributes to Higher Image Quality

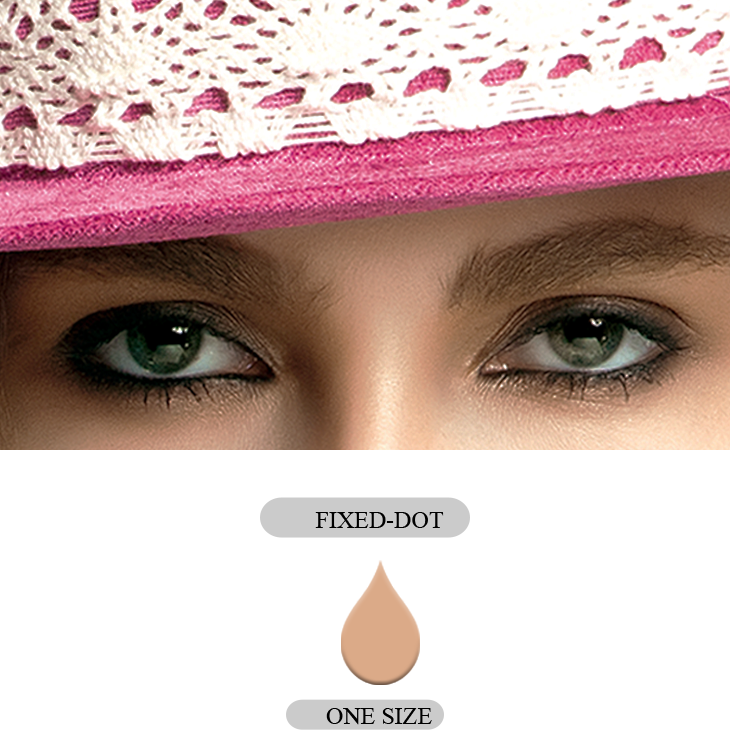

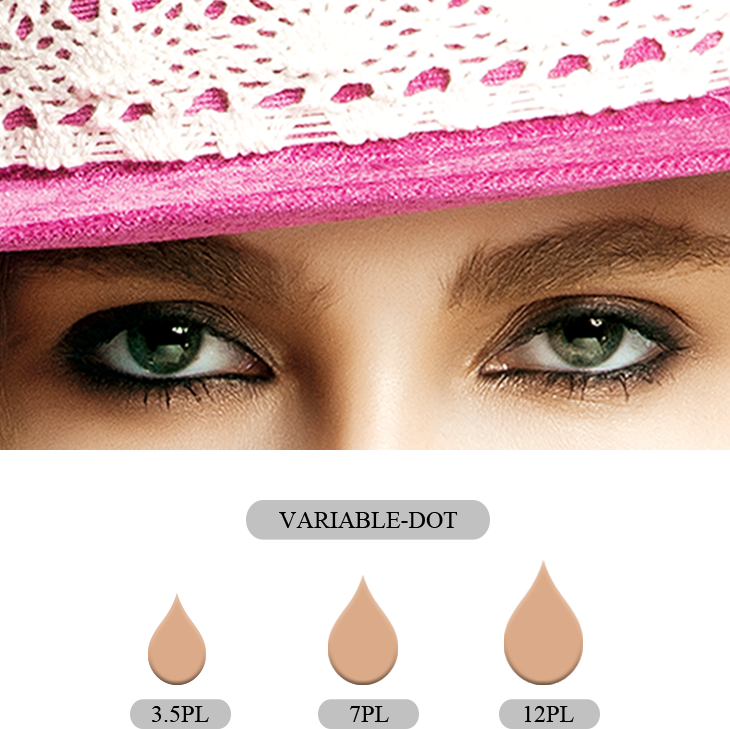

Variable Dot Technology
Variable Dot Technology
Size of Objects to be Printed on
Help you explore more possibilities

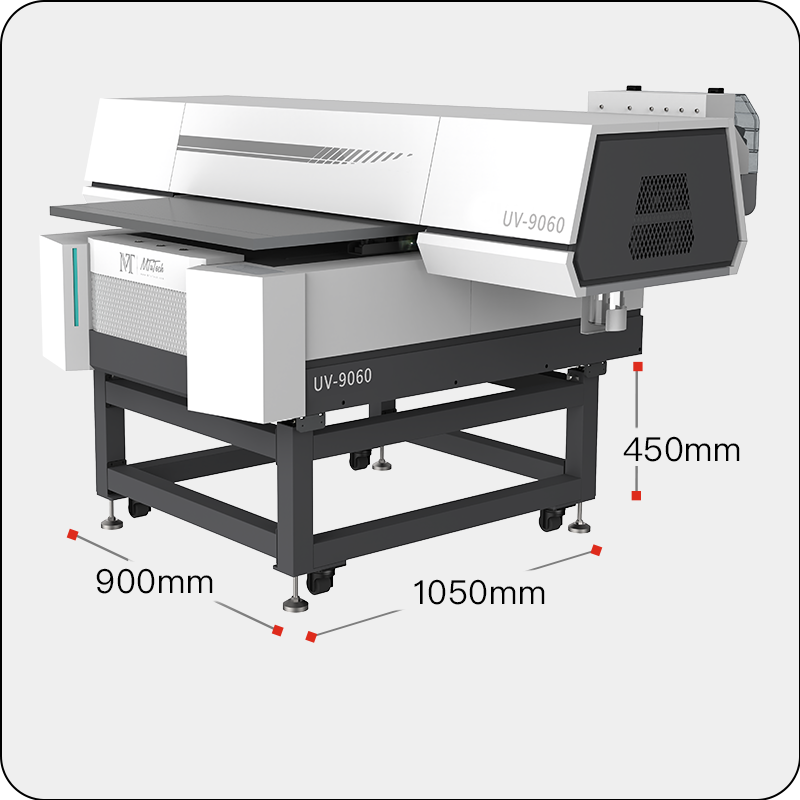

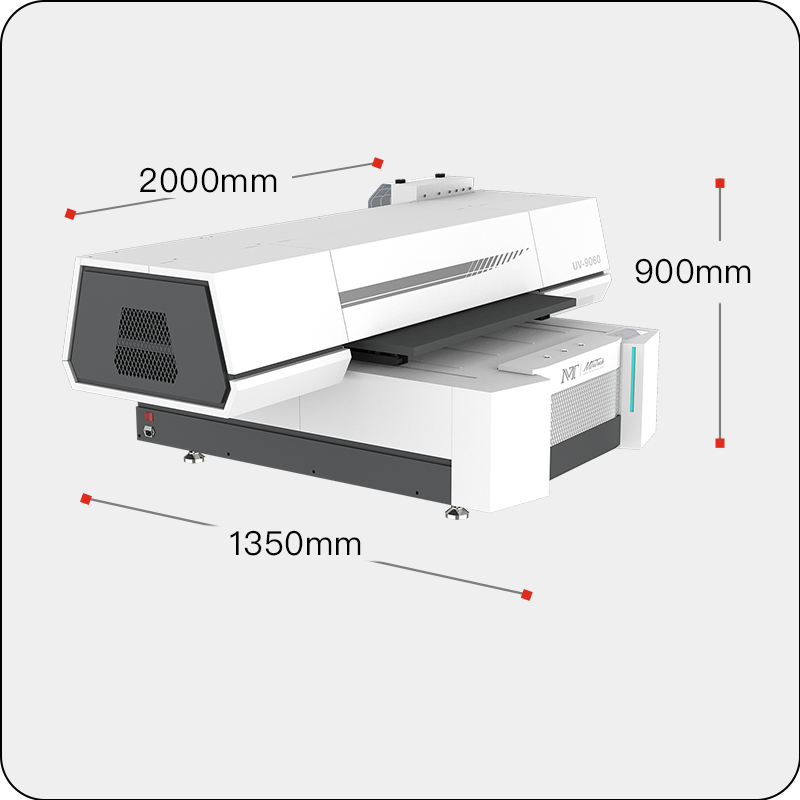

MT-UV 9060 is the smallest UV printer produced by MT and features a flatbed size of 900mm by 600mm and a printing height of 180mm. For this reason, the
MT-UV 9060Pro is only designed for printing on smaller items. Objects to be printed on the MT-UV 9060Pro range from small keychains, lighters, metal tags, and puzzle pieces to larger materials like basketballs, speakers, and other materials that can fit comfortably into the printer.It is important to remember the printer’s printing height when considering the size of the item to be printed on and to ensure that it does not exceed the printer’s printing height of 180mm. Make sure the material to be printed on is not a tight fit for the printer to prevent any reduction of print quality.The machine can only handle items with diameters between 45mm-110mm for tapered item printing.
Left 45 °
Right 45 °
Cylinder Diameter: 45mm-110mm

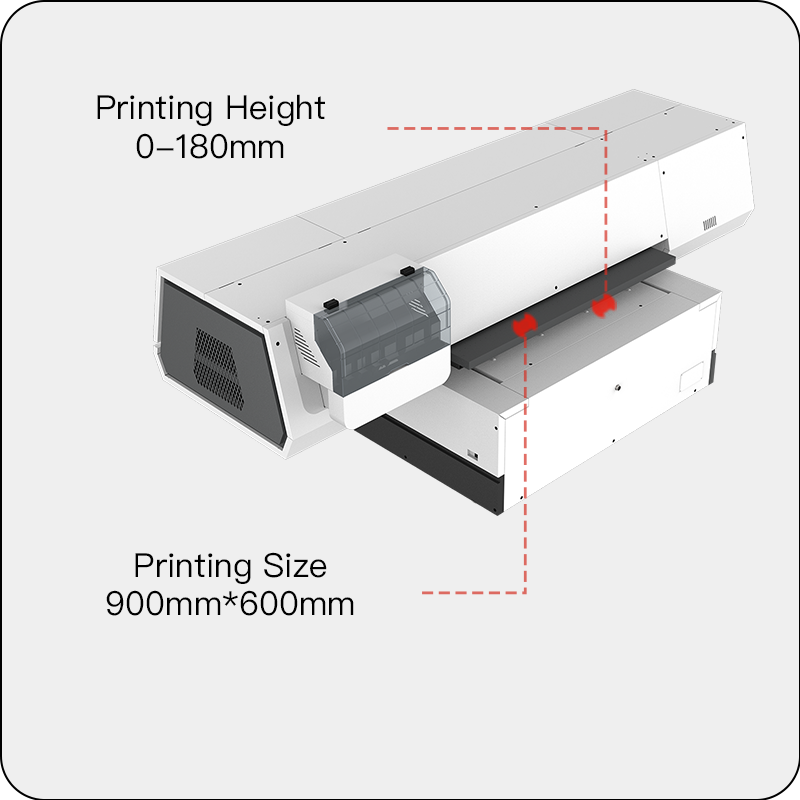

Printing On Flat Objects
The texture of Objects to be Printed On
UV Printer Applications
The MT-UV 6090Pro lets you print on surfaces of practically any type. From smooth, glossy surfaces like glass or plastics to rough surfaces like textured metal and golf balls, you get premium quality prints with this printer.
1) Features visual positioning technology, identify items position accurately , improve print accuracy and efficiency.
2) Direct to large format rigid substrates & small promotional products printing capibility.
3) 8-color UV Ink for high-quality prints(CMYKLcLmLkLlk+W+V+Pr).
Offer direct to surface (object) printing capability
Offer UV direct to film printing capability
Visual Positioning System
Rotary Attachment
Integrated Aluminum Frame
Continuous Ink System
Air-cooled UV Lamp
Platform
MT-UV9060Pro
Product Functions
The MT-UV 9060Pro comes with all you would expect from a professional UV printer and more.The printer comes equipped with the following features:
- Multi-Mode Printing
- Advanced Noise Reduction Technology
- Variable Ink Drop Technology
- Automatic White Ink Mixing
- Automatic Cleaning
- Intelligent Control Technology
- Multiple Material and Ink Compatibility
Multi-Mode Printing
Multi-mode printing technology allows various printing operations, Including variable grayscale printing, And multi-layer printing. This provides you with
multiple printing styles for a broader range of applications and greater design implementation.
Small Mirrors
Small Mirrors
Small Mirrors
Small Mirrors
Advanced Noise Reduction Technology
Advanced noise reduction technology on the MT-UV 9060 allows for a more silent printing experience. This provides a noise-free work environment that improves workplace conduciveness and the overall atmosphere.
Advanced Noise Reduction Technology
Advanced noise reduction technology on the MT-UV 9060 allows for a more silent printing experience. This provides a noise-free work environment that improves Variable ink drop technology allows the 9060 to vary the size of ink applied at any given point in the printing process. This variation in ink size allows a more controlled printing process to produce detailed designs and prints, creating accurate designs even in smaller images. Epson’s unique Variable Sized Droplet Technology(VSDT) delivers smooth gradation by freely control to eject the droplet volume. Variable Ink Drop Technology All MEMS manufacturing and thin film piezo element can realize high precision and high density(600Dpi / 2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality.Precision made of Epson unique MEMS nozzles and an ink flow path ensure the per fectly round ink droplets are placed accurately and consistently.
White Ink Mixing
The MT-UV 9060 comes equipped with white ink mixing technology that prevents the printhead from getting blocked by precipitated ink.
Automatic Cleaning
Alongside white ink printing technology, the printer also features automatic cleaning technology that keeps the printhead clean and prevents precipitation and blocking. This drastically improves the life of the printhead and keeps the machine’s print quality at a premium for longer.
Intelligent Control Technology
Featuring an intuitive, intelligent control system, the MT-UV 9060 is easy to use and requires little expertise to master. The machine’s
intelligent control technology provides a simplified means to access the machine’s advanced features allowing for faster utilization and a better printing experience.
Ink Type
Colors
Printing Area
Welcome to Watch MT Online Video!
MT has a long heritage in inkjet UV printer manufacturing and supplying.
Today, our UV printer product portfolio ranges from entry-level small UV printers to industrial volume large format UV printer machines. In this video, you’ll take a look at our new UV Hybrid Printer.
MT-9060Pro
Multiple Material and Ink Compatibility
Compatible with various materials and inks, the MT-UV 9060 is equipped to handle practically all flatbed printing and can be used to print on any material and surface.
Using two Epson i3200 print heads, the MT-UV 9060 can print high-quality images substantially faster. Two print heads are used for the conventional CMYKW inks, leaving the remaining four print heads open to any mix of Varnish to meet your unique requirements.
The large ink tank accompanies the printing process, resulting in a self-agitating system that reduces setup time and makes the start-up process easier. Each 500 mL large ink tank is made to function as a closed ink system and as a bulk ink solution.
3pcs i1600 printheads W+CMYK+V
3pcs i1600 printheads
W+CMYK+V
3pcs printheads
W+CMYK+V1(bright light)+
V2(gold stamping)
12pcs printheads
P+W+CMYK+V
4pcs printheads
CMYK+W+CMYK+V
4pcs printheads
W+W+CMYK+V
4pcs printheads
W+CMYK+CMYK+V
4pcs printheads
KCMYLcLmLkLlk+W
+KCMYLcLmLkLlk+V
4pcs printheads 8 colors
CMYKLcLmOR+W
+CMYKLcLmOR+V
4pcs printheads 8 colors
MYKLcLm(FoFr)Customized+W
+CMYKLcLm(FoFr)Customized+V
4pcs printheads 8 colors
