UV 2513
Order Online for Touchless Delivery
2500 x 1300mm
Printing Size
110.4㎡/h
Productivity
1200dpi
Resolution
100mm
Max. Media Thickness

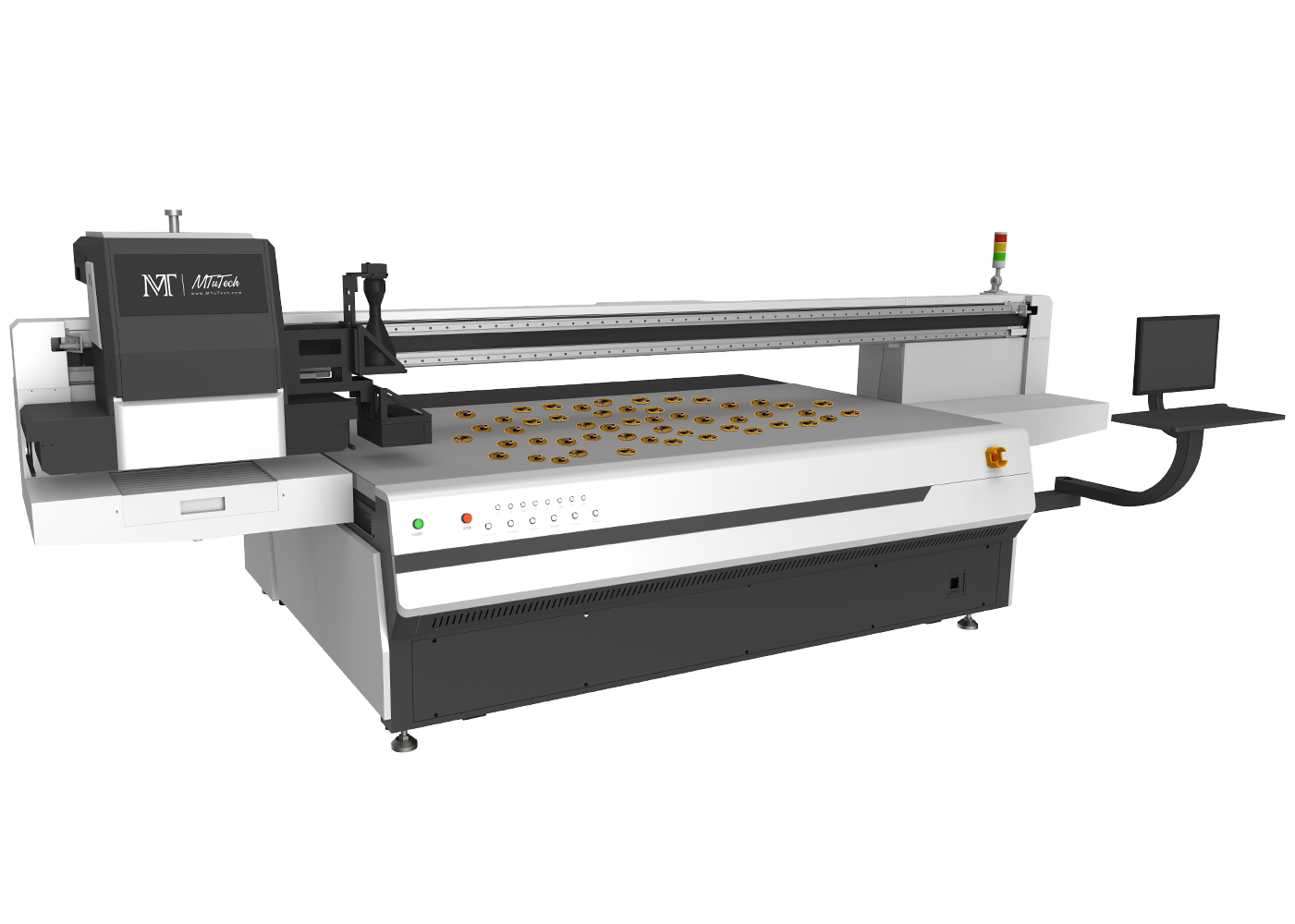

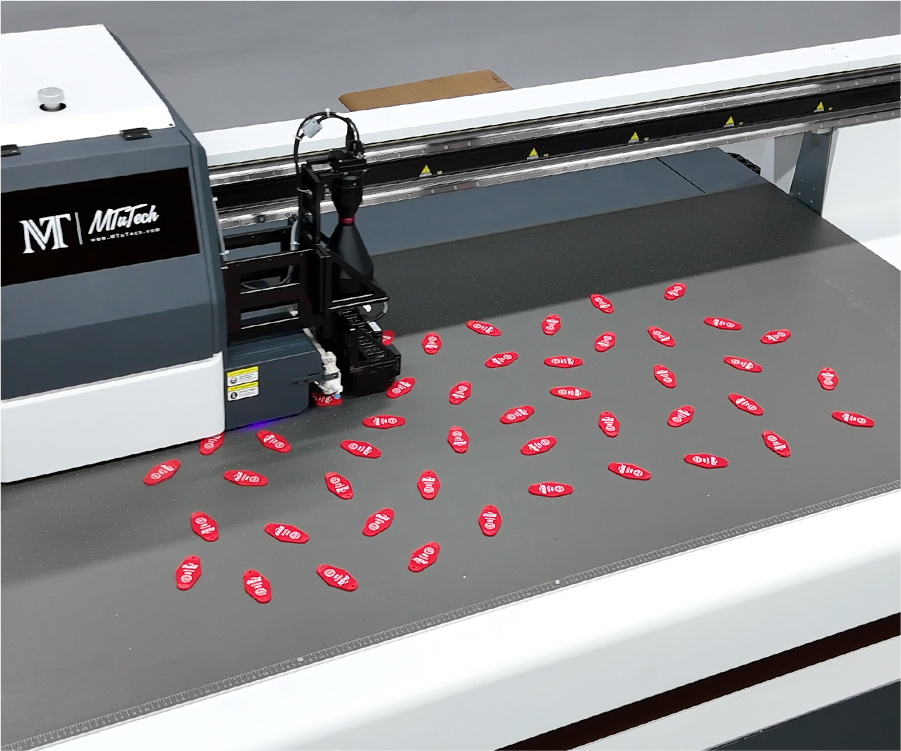

Features Visual Positioning Technology

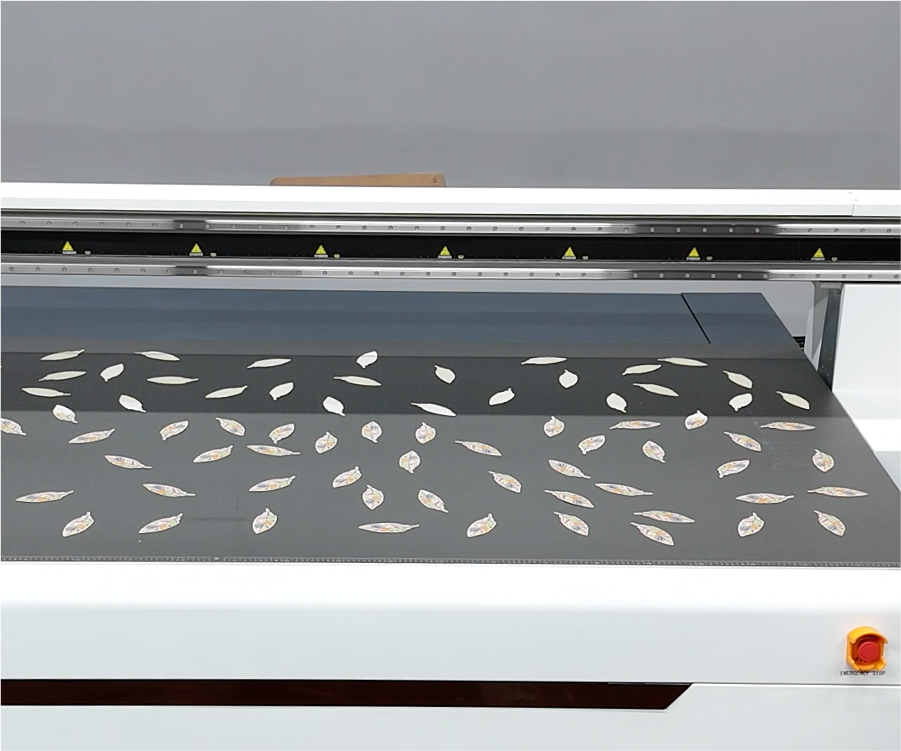

Say goodbye to positioning fixture, intelligently identify and position.
No need for positioning and placement, higher production efficiency.
Solve the problem of positioning special-shaped products.

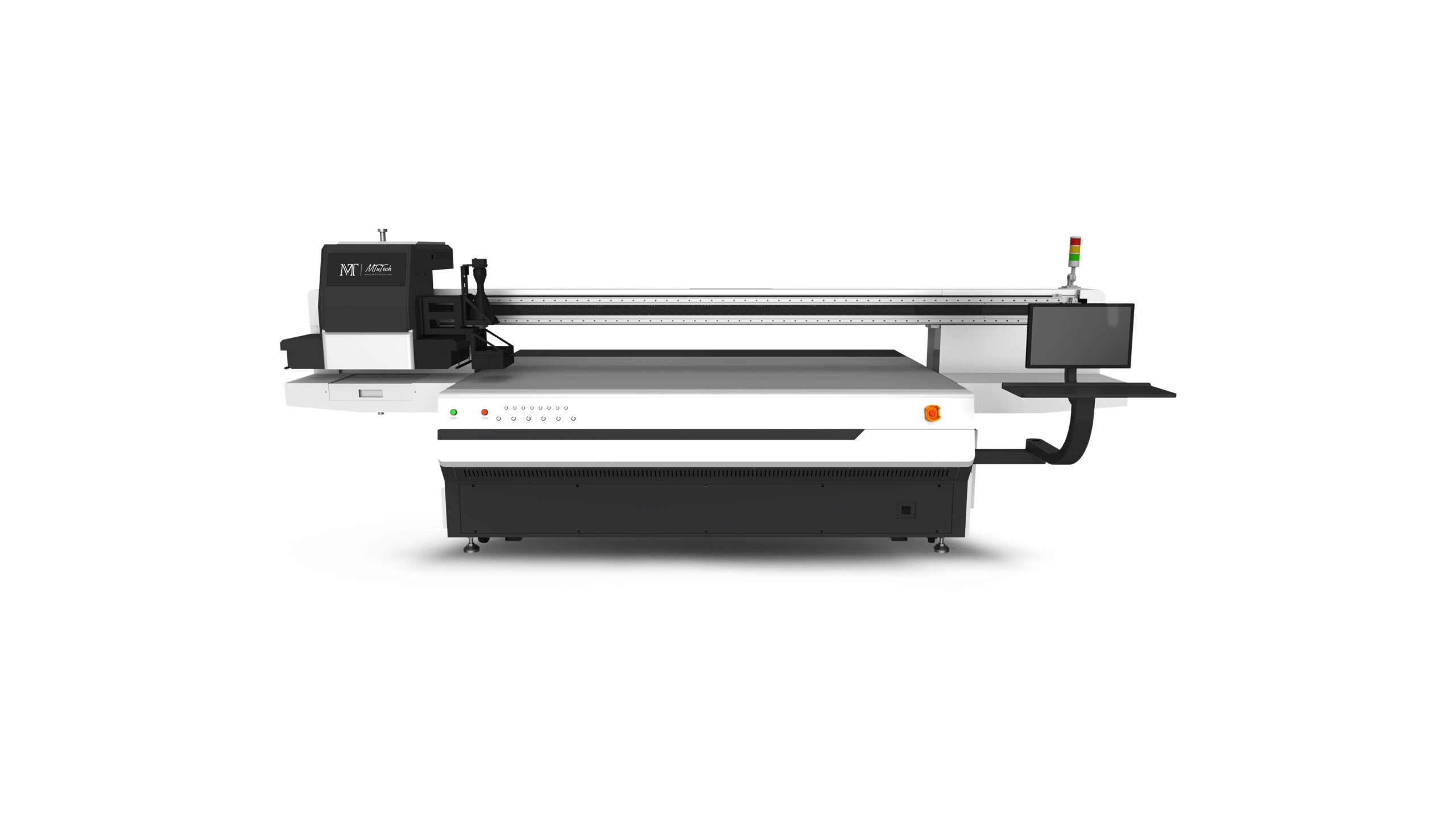

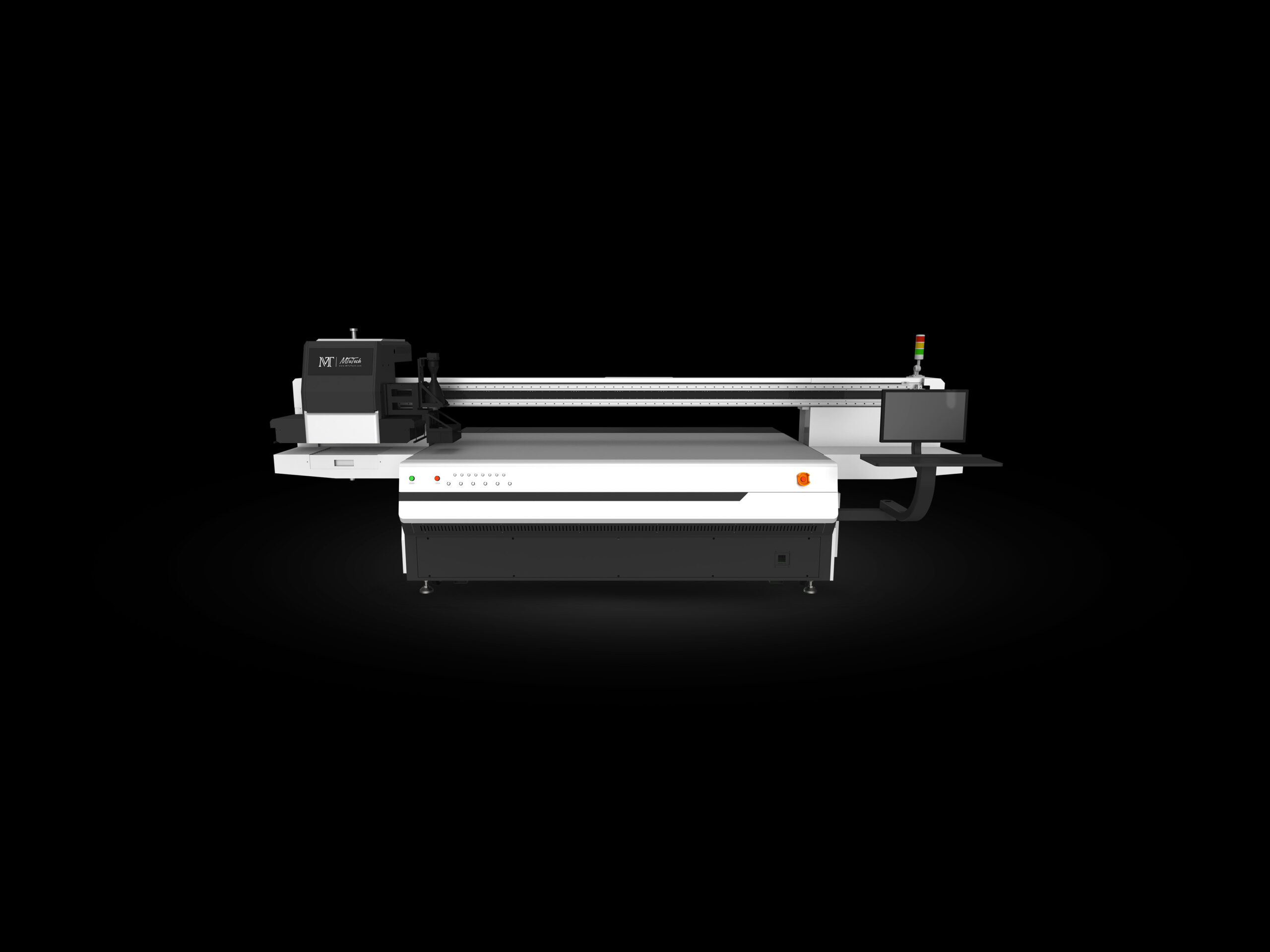

Meet Wide Format Flatbed UV Printer
Prepare to start generating huge profits on personalized and mass produced products with our factory price 4′ x 8′ UV flatbed printer. The ultimate in printing versatility, users can simply create top-quality rigid, medium and soft products.
1) Features visual positioning technology, identify items position accurately , improve print accuracy and efficiency.
2) Direct to large format rigid substrates & small promotional products printing capibility.
3) 8-color UV Ink for high-quality prints (CMYK+LCLM+W+V) .

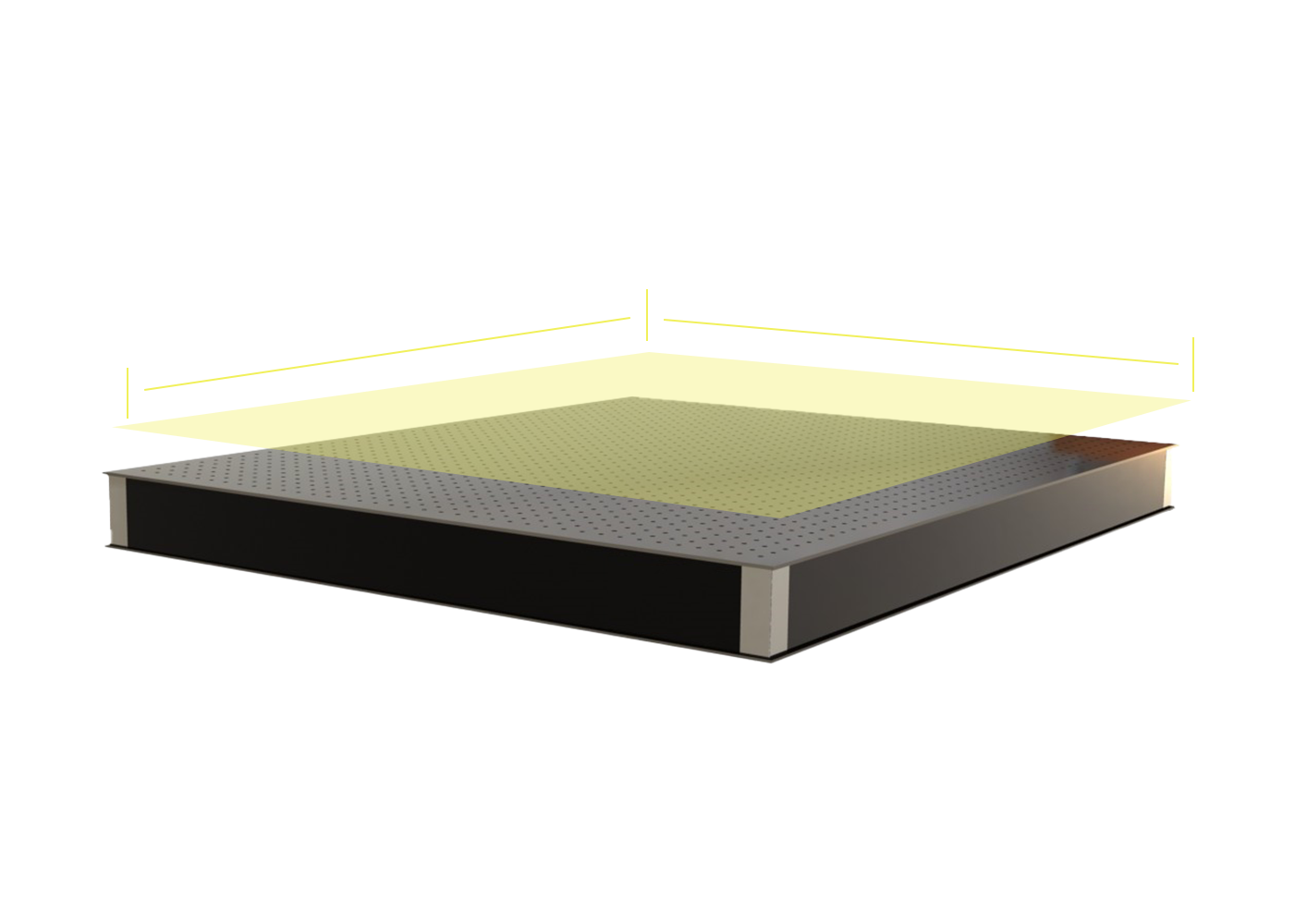

4) Print area: 2500mm*1300mm. Meet the demands of large format printing.
5) Print directly onto media up to 250mm(9.84″) thick.
6) Variable droplet technology minimizes graininess.
7) Exceptional image quality at true production speeds.

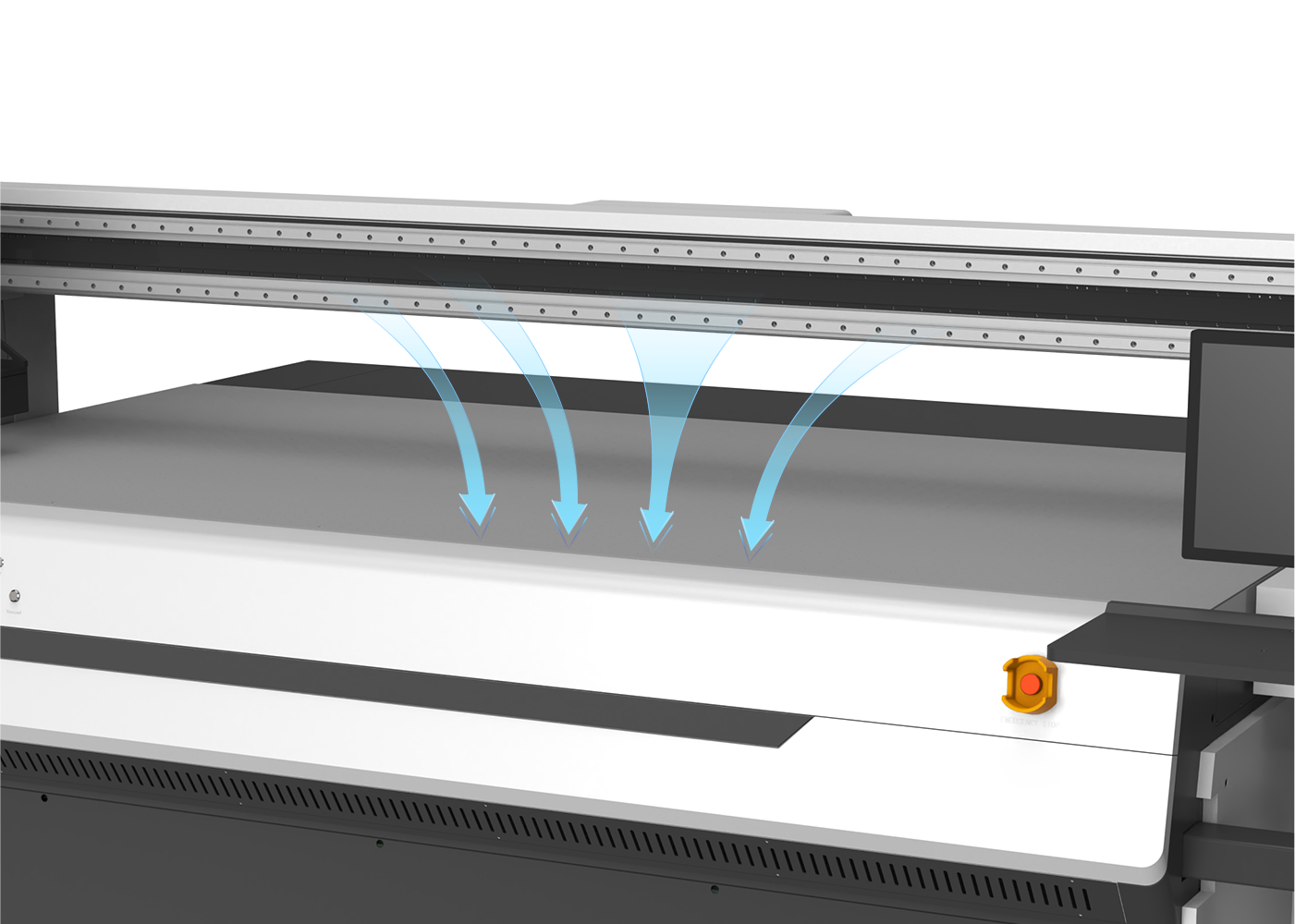

8) Powerful vacuum zone for easily hold media in place and increased print accuracy.
2500 x 1240mm
Printing Size
110.4m²/h
Productivity
1200dpi
Resolution
Ultimate Performer
MTuTech flatbed UV printer 2513 delivers technological innovation into the market faster and more successfully than anyone. The newest printhead for commercial and industrial flatbed UV printing machine models enables high-performance runs.
Printhead Technology
Ricoh Gen6 printheads feature with excellent durability, accuracy, and productivity, it can provide technical support in waveform optimization, ink compatibility testing, and printhead integration.
CMYK(LcLm)
High fidelity color, realistic and delicate pictures.
3Group CMYK(LcLm)
High fidelity color, realistic and delicate pictures. The highest output can reach 110.4M²/H
W+2Group CMYK(LcLm)
It not only guarantees the output, but also realizes white ink printing, which is the best choice for both personalization and high output.
W+CMYK(LcLm)
White – For printing on transparent or black materials, using white as the base color is ideal. The embossed effect can also be achieved by multi-layer printing with white ink.
CMYK(LcLm)+W+ CMYK(LcLm)
In the color-white-color printing method, the color is printed first, then a layer of white, and finally a layer of color. The combination of color, white and color makes the colors saturated, picture precision high, and the front and back pictures dazzle.
W+CMYK(LcLm)+V
White – For printing on transparent or black materials, using white as the base color is ideal.
Varnish – can be printed on part or all of the surface of the material to produce visual and tactile effects.

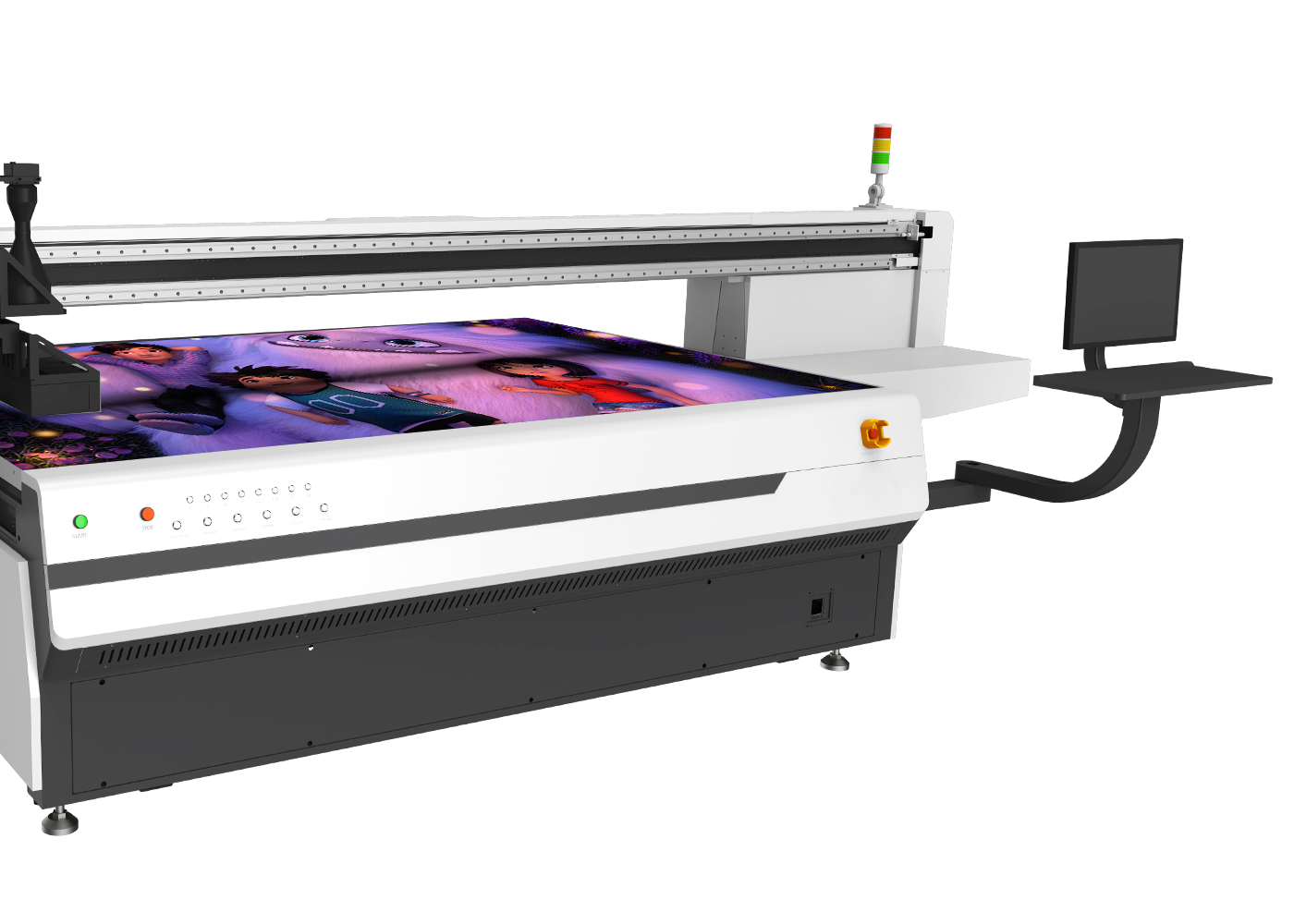

Maximize image quality and productivity with iMaxcan UV 2513 series UV flatbed printer.

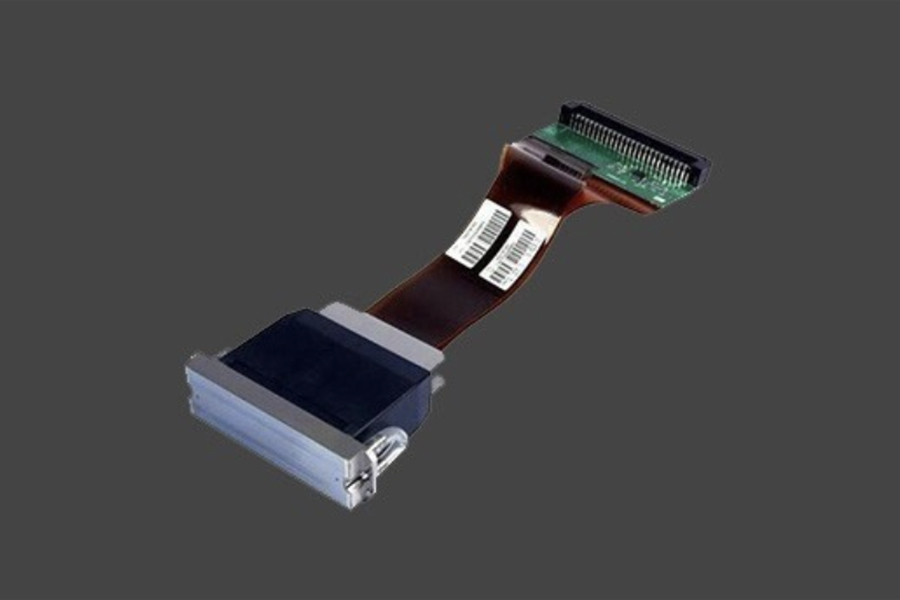

Equipped with Ricoh G5/G6 industrial-grade Ricoh printheads, the utilization rate of the printheads is improved, which greatly improves printing capacity.

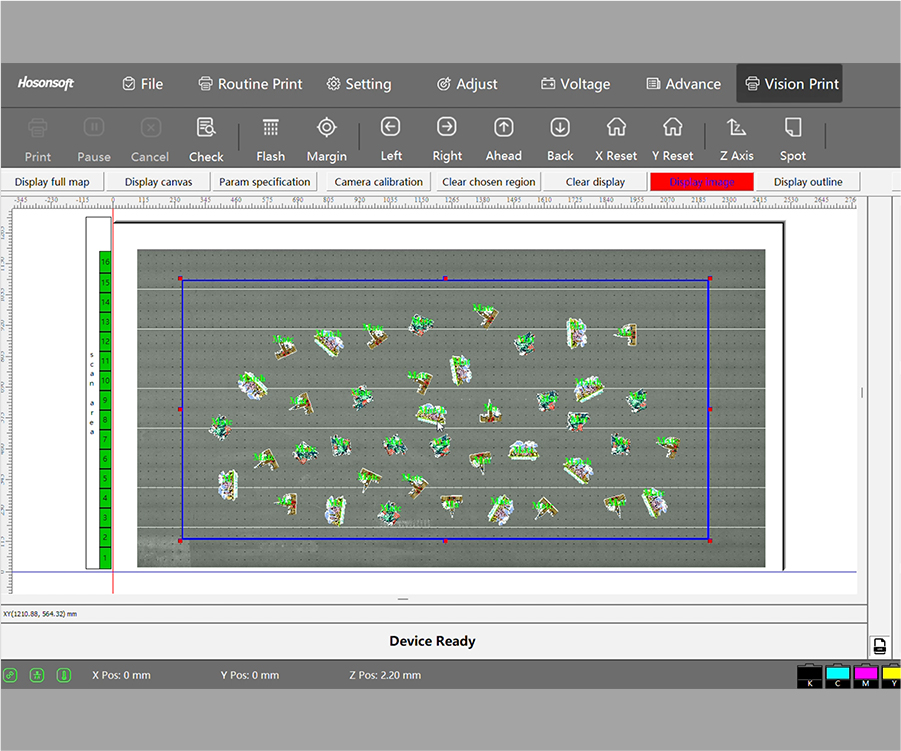

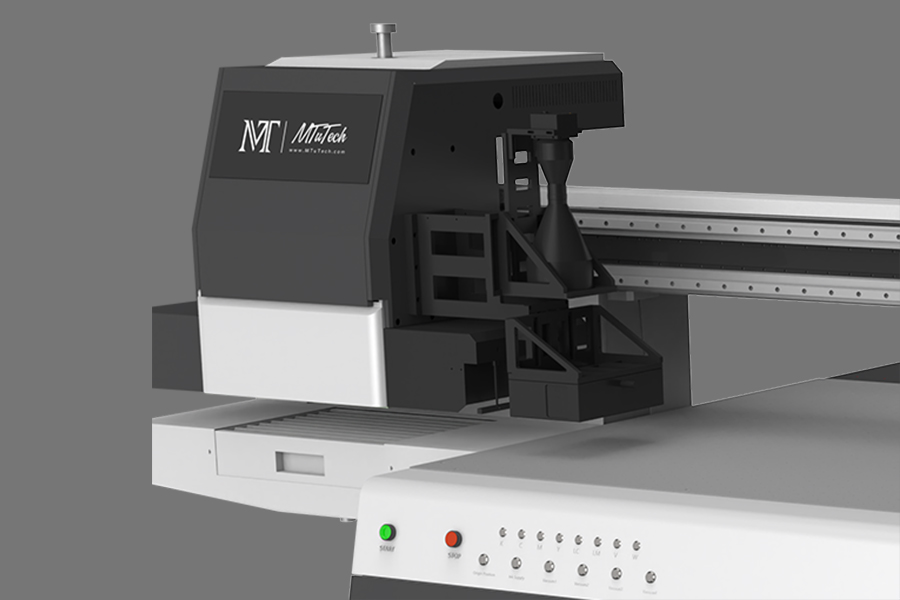

High definition camera scanning, precise recognition of material contours and textures. It integrates visual software system, breakthroughs the interaction history of multiple software sets, making it easy and convenient operation.

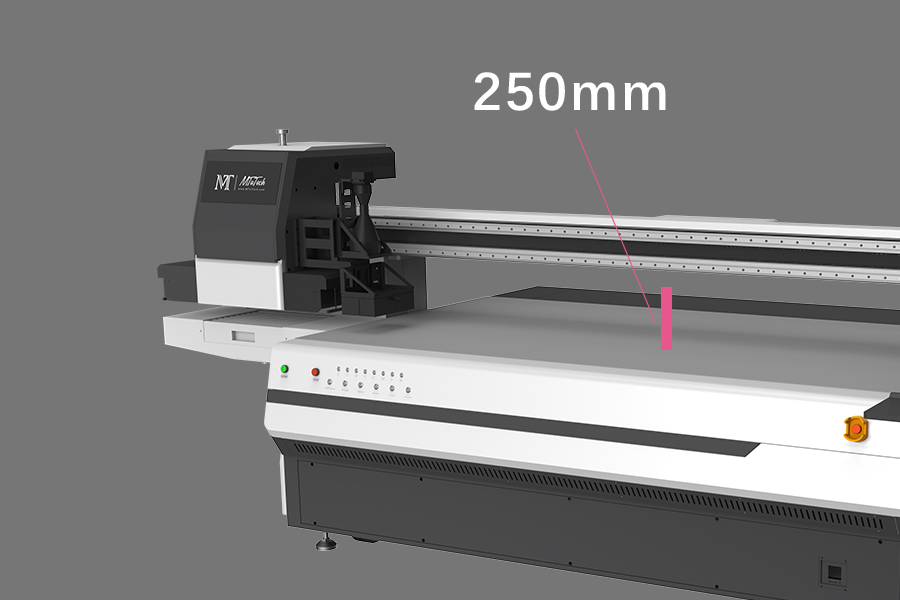

MTuTech UV flatbed printer’s MT-UV 2513 auto thickness sensor will set the print head to the proper height, automatic thickness detection up to 250mm（9.84″ ).

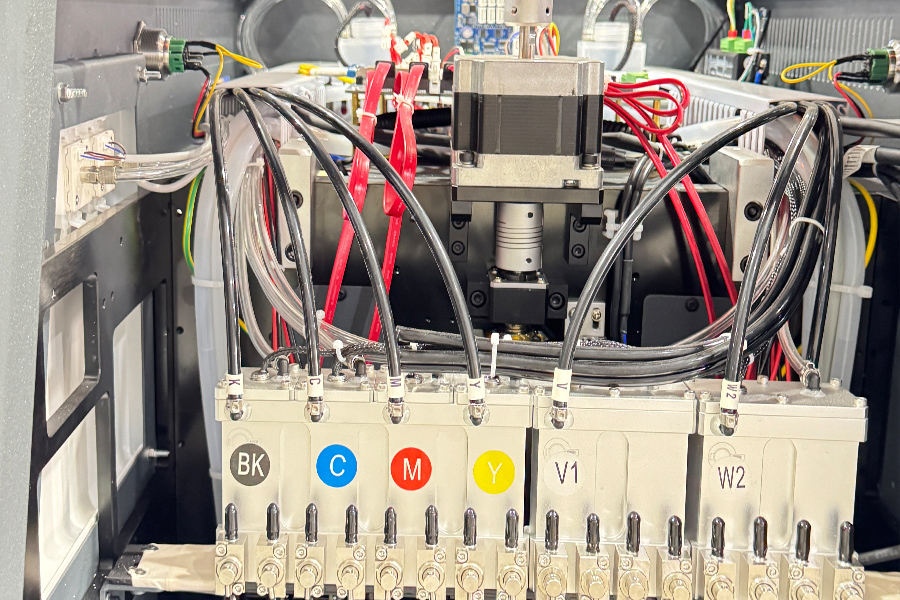

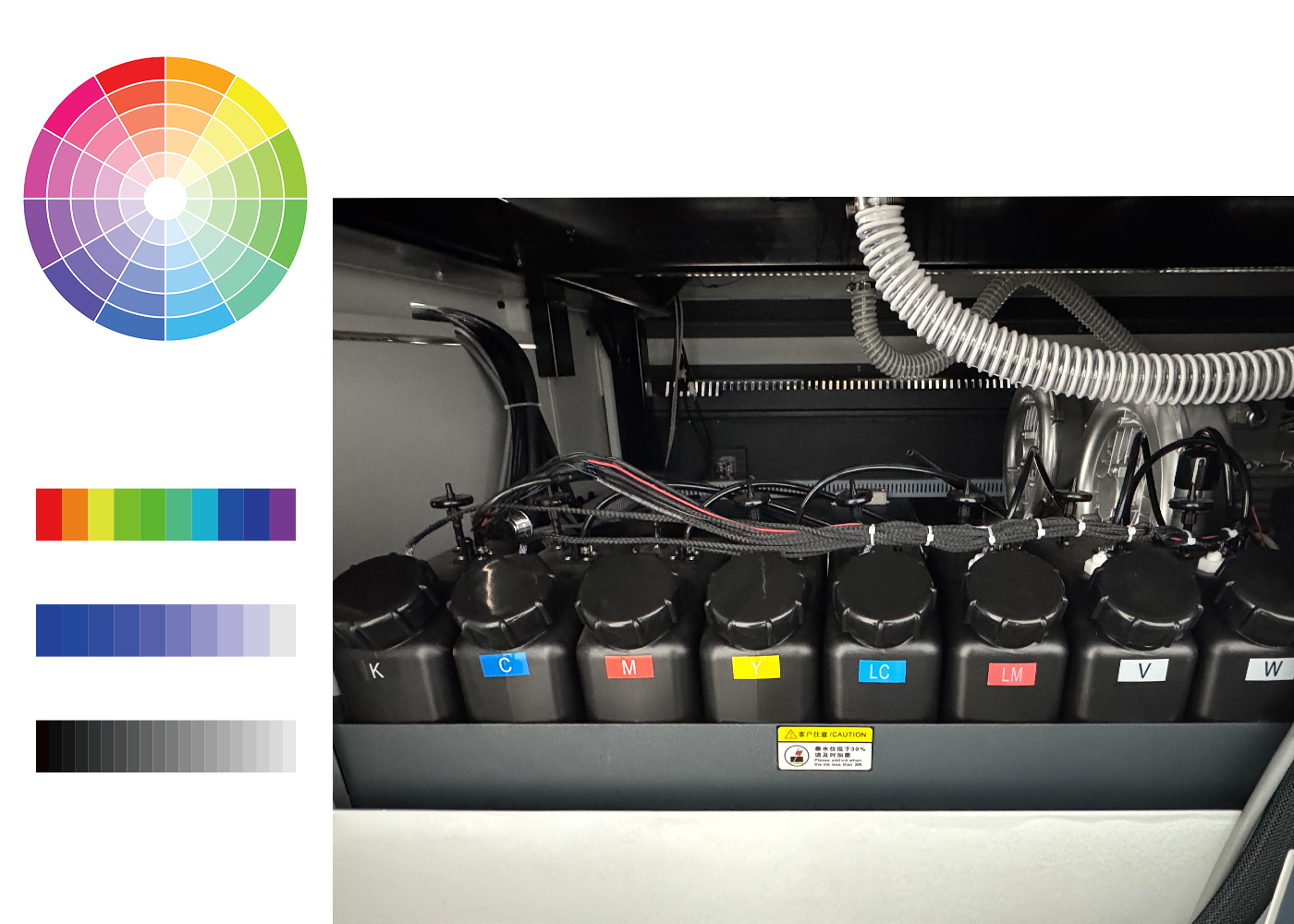

8 colors congugiration, white, varnish and primer make the printing color with high saturation and bright color. The UV printer also can spray to the primer directly, which can intensify the adhesion and save both time and labor.

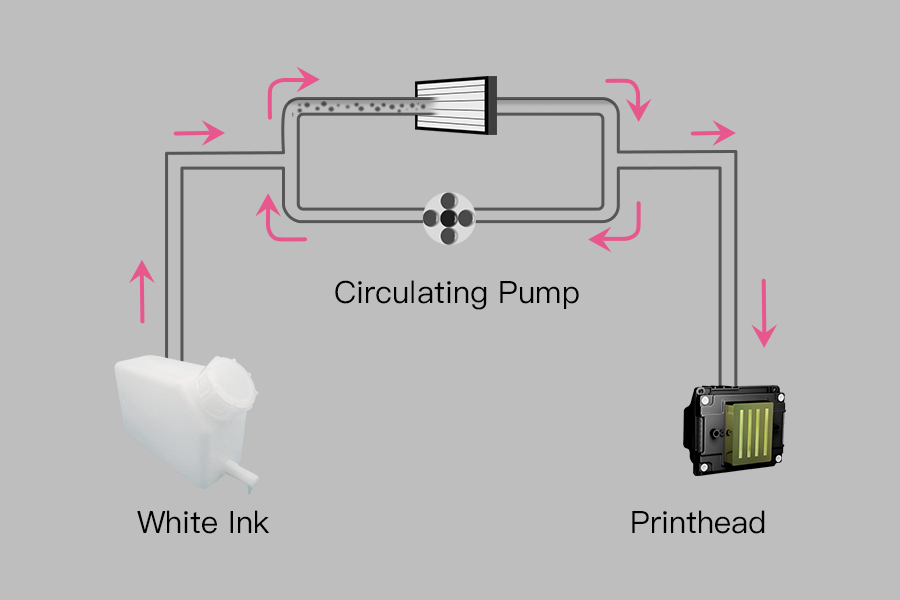

White ink circulation system helps reduce ink sedimentation, greatly improve print performance & reliability.

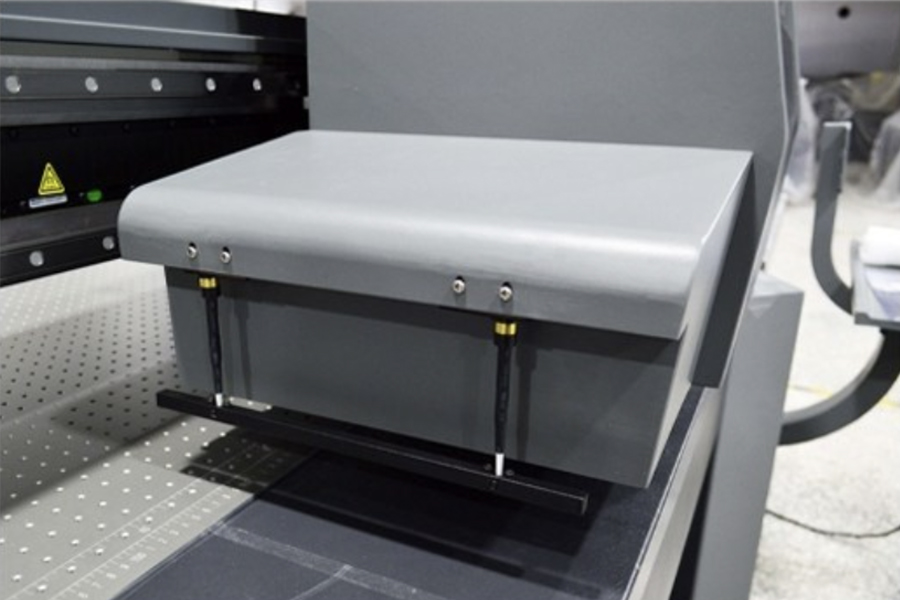

Printhead anti-collision detection sensor helps protect the print head from damage.

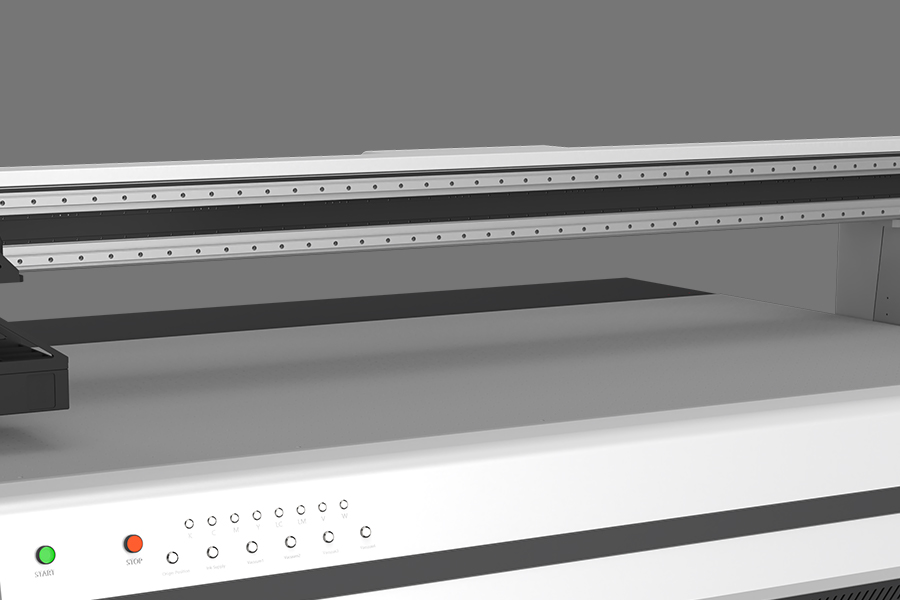

X-axis adopts double-row linear guides,which makes printing more stable and ensures printing accuracy.
Made of aluminum plate material, built with internal honeycomb structure, not easy to deform, high flatness.
Printing Size
Resolution
Productivity
Print Media
Rigid Printing Offers Endless Possibilities
Print directly onto rigid substrates such as wood, glass, acrylic, MDF, foam board, poster board, real estate signage, in-ground posters and more.
Safety
Carriage Collision Avoidance System
MTuTech flatbed printer UV 2513 series supports carriage collision avoidance system to ensure safe and smooth printing.
Ricoh Gen6 Print Heads
Feature variable ink droplet technology, ink droplet size as small as 5pl, high production capacity, high precision and high ink adaptability.
1 of 11Electrostatic Rod
It can effectively solve the problems of static electricity and dust generation in the production process.
2 of 11Carriage Anti-Collision System
The carriage will stop immediately when it encounters any object during printing, which effectively protects the carriage and print heads in time.
3 of 11Printing Platform
The platform is equipped with 30 supporting points as standard, which is twice that of ordinary printers. This ensures better platform stability.
4 of 11Platform Suction System
The suction strength is adjustable, the 5 platform suction partitions can be used as single unit or controlled individually.
5 of 11THK Guide Rails
Imported Japanese THK guide rails provide increase stability, precision and reduced noise when printing.
6 of 11Linear Maglev Motor
Provides High precision, high speed, high thrust, ultra-quiet and a long service life.
7 of 11Emergency Button
Fail-safe, high-visibility emergency stop switch instantly stops machine operation for operator safety in emergency situations.
8 of 11Computer Stand
Comfortable use and ergonomic. The participation of human-machine design concept obtains a comfortable computer experience.
9 of 11Metal Grating
Incremental 1μm grating scale designed to provide feedback for high-precision linear measurements used for very fine printing.
10 of 11Printer Traffic Light System
Different colors are displayed according to the actual state of the machine, Green for Normal Operation, Yellow for Standby, and Red for Error.
11 of 1116 Years
Meitu Digital And Technology Co., Ltd. , is based on the intelligent industrial digital inkjet printing industry and has 16 years of independent research and development experience. Our company is an All-in-one industrial printing solution provider integrating R&D, production, sales and service.
iMaxcan is committed to providing a complete set of intelligent digital printing solutions for household appliances, 3C, furniture, home improvement, packaging, electronic device cases, handicrafts, leather goods and many other industries. We also provide customized printing solution consultation, OEM/ODM, product training, equipment maintenance and other services. We are committed to becoming a world-class supplier of industrial printing solutions.
5S Management Systems
Our manufacturing facility adopts 5S-level management standards: Sort (SEIRI), Straighten (SEITON), Shine (SEISO), Standardize (SEIKETSU), and Sustain (SHITSUKE).
The 5S management system originated from Japan, the corresponding 5S refers to Sort, Straighten, Shine, Standardize, Sustain and other related production factors such as materials, equipment, and personnel at the manufacturing site. This system lays the solid foundation of management practices that guarantee for the rapid improvement of product quality and even success in the global market.
The purpose of implementing 5S management:
(1) The opportunity for employees to make mistakes and chances of defective products are greatly reduced and quality is greatly improved;
(2) It Improves morale;
(3) Avoids unnecessary wait times and searches, improving work efficiency;
(4) Resources can be reasonably allocated and used thus reducing waste;
(5) The clean working environment impresses customers and improves the overall image of the company;
(6) Passages are unobstructed, all signs and markings are clear and conspicuous and thus helping to ensure personal safety;
(7) Lay the foundation for the smooth development of other management practices.
Obtained ISO9001
In order to ensure that products meet the quality requirements for stable and long term use, customers have required suppliers establish a quality control system according to the ISO9001 quality management standard that they need to get certified to. The applicant uses the proven quality management system to ensure that the supplied products meet specified requirements and are stable. It is impossible to have stable product quality by only doing product sampling inspections.
Implementing the ISO9001 quality management system standard is determined by the basic principles of it, which will greatly reduce or eliminate substandard products, thereby significantly reducing product costs and improving economic benefits.
Implementing the ISO9001 quality management system standard means standardizing the quality management of the enterprise, having clear responsibilities for each worker, eliminating waste, greatly improving work efficiency and freeing up time for senior management.
Once a company has passed the quality assurance system certification, it proves that the company has established and effectively implemented the quality assurance system in accordance with the ISO9001 quality assurance standards and has achieved integration. The company has sufficient quality assurance capabilities to meet customer requirements, thus gaining customers’ trust. Expanding the visibility of the enterprise, promoting the development of the business, and greatly increasing sales of their products.
Passing the ISO9001 quality management system standard, the enterprise has presented its quality assurance ability to meet the customer’s requirements on the one hand and on the other obtains the customer’s trust, increasing its popularity, which can significantly expand domestic market share. At the same time, from the ISO9001 quality management system certification in our country, mutual international channel recognition open up for the products of the certified company to enter the international market. Most foreign customers clearly require suppliers to pass ISO9001 quality management system certification when conducting business negotiations.
In short, implementing the ISO9001 quality management system standard and passing the certification process is essential for growth and development of the enterprise, as well as meeting the requirements of customers and the need for products to smoothly enter the international market.
MTuTech Smart Flatbed UV Printer
The technology-leading intelligent flatbed UV printing machine mode greatly saves manpower and improves printing efficiency, leading to less waste and fewer costly mistakes which, in turn, leads to better overall margins and faster turnaround times.
UV 2513 Specifications
Dimensions
Flatbed Size
(2500mm × 1300mm)±2mm
Media Thickness
0.1~100mm
Dimensions and Weight
Dimensions (L×W×H)
4556mm×2140mm×1450mm(±10mm)
Weight
1150 kg
Colors
CMYK √
Light cyan, light magenta √
White √
Varnish √
Productivity
Printing Speed CMYK(Lc Lm)*3
Production mode: 110.4㎡/h
Standard mode: 65.7㎡/h
Quality mode: 48㎡/h
Printing Speed CMYK(Lc Lm)+W+V
Production mode: 36.8㎡/h
Standard mode: 21.9㎡/h
Quality mode: 16㎡/h
Configuration
Ricoh Gen6 Printheads
Resolution
Up to 1200dpi
Inks
Integrated ink supply
2 litre containers
UV-curable inks √
Wide color gamut √
Environmental friendly, VOCs Free √
Superb durability √
Installation Environment
Power Specification
AC220V ±5%50~60 Hz
Operating Temperature
18°C~30°C
Relative humidity
30%~70% RH
UV 2513 Specifications
Printing Speed CMYK(Lc Lm)*3
Production mode: 110.4㎡/h
Standard mode: 65.7㎡/h
Quality mode: 48㎡/h
Printing Speed CMYK(Lc Lm)+W+V
Production mode: 36.8㎡/h
Standard mode: 21.9㎡/h
Quality mode: 16㎡/h
Configuration
Ricoh Gen6 Printheads
Resolution
Up to 1200dpi
CMYK √
Light cyan, light magenta √
White √
Varnish √
Integrated ink supply
2 litre containers
UV-curable inks √
Wide color gamut √
Environmental friendly, VOCs Free √
Superb durability √
Flatbed Size
(2500mm × 1240mm)±2mm
Media Thickness
0.1~100mm
Dimensions (L×W×H)
4556mm×2140mm×1450mm(±10mm)
Weight
1150 kg
Power Specification
AC220V ±5%50~60 Hz
Operating Temperature
18°C~30°C
Relative humidity
30%~70% RH
