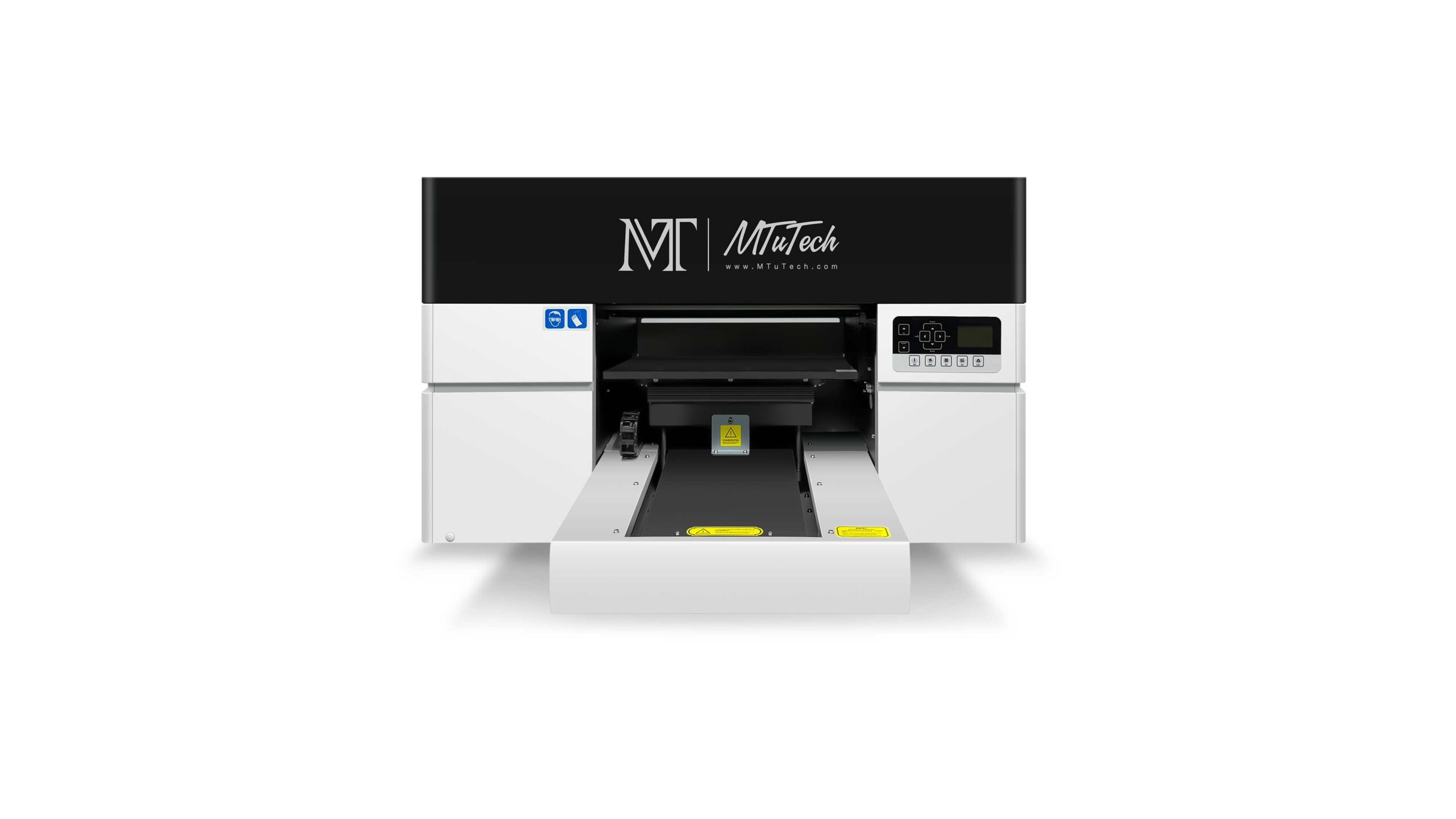

UV A3MAX
Small Format UV A3 Printer to Create Custom Items
420 x 297mm
Printing Size
Epson i3200(8)-S1HD
Printheads
960 x 1200dpi
Resolution
95mm
Maximum Media Height
Meet Small A3 Flatbed UV Printer
What are the features of MT UV A3 Printer?
1: Accurate Printing
PrecisionCore Epson i3200(8)-S1HD printheads ensure accurate printing results. The TFP actuators, ink channels, and nozzle plates in the MicroTFP print chips that make up PrecisionCore printheads are fabricated with submicron-level accuracy using MEMS technology. Advanced technology Variable Sized Droplet Technology (VSDT) , also contributes to the blazing speed and superb print quality of Epson printers. Built with Epson’s precision MEMS fabrication technology, PrecisionCore printheads take inkjet printing to a new level.
2: 2.5D – 3D High Res Print
Creating an accurate print on a cylinder surface is pretty simple with iMaxcan A3 uv printer. A special rotary attachment is required for cylindrical item printing.
We provide a variety of printing attachments, making it so easy to print various gift and promotional items. No obstacles at all!
3: Optimize Application Reproduction

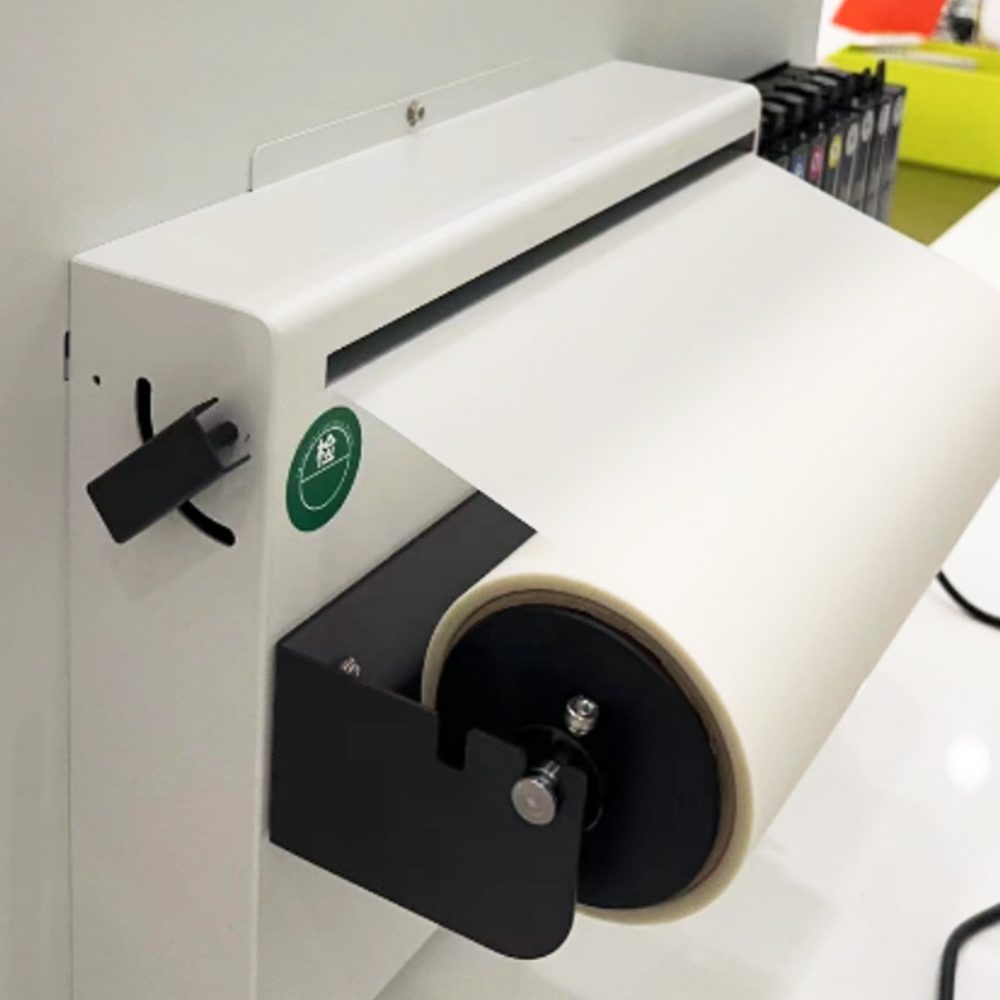

Dual role adaptor allows both sheet & roll media feeding. Allow a wider application for direct printing on objects or using AB film for UVDTF stickers, or even printing labels on sticker materials.
4: Cartridges With Auto Circulation
Intelligent Ink Supply System – Advance ink cartridge design with automatic ink circulation for smooth printing. Also equipped with ink low alarm and easy refillable minimize down time.

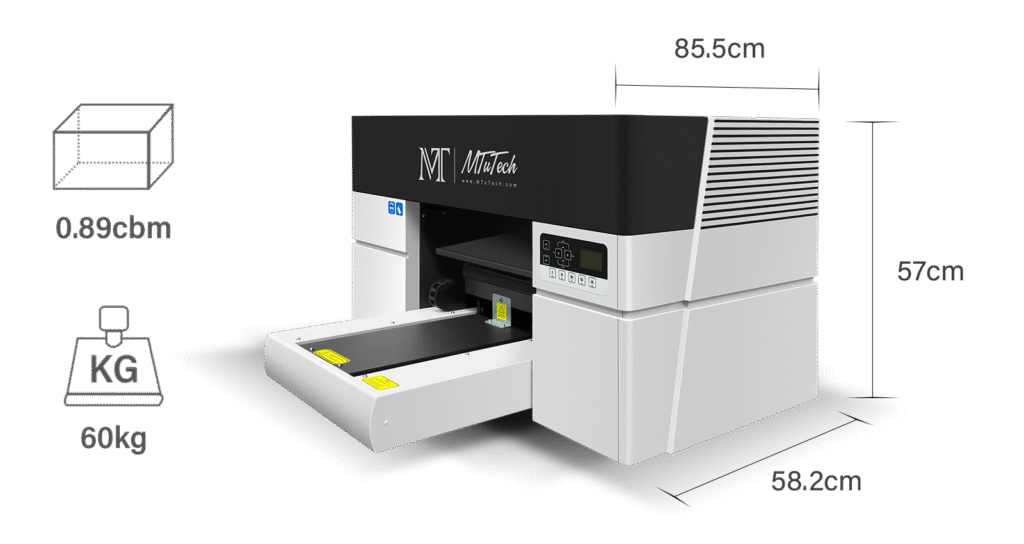

5: Compact Design
Intelligent Japanese design tooling increased mobility and provide convenience to customers.
6: Easy installation
Load the printer whatever surface even, plug the ink cartridges, and start to click from the software for the initial installation immediately.
- Printhead is mounted and align in factory
- 10 min installation without assistance
- English Manual

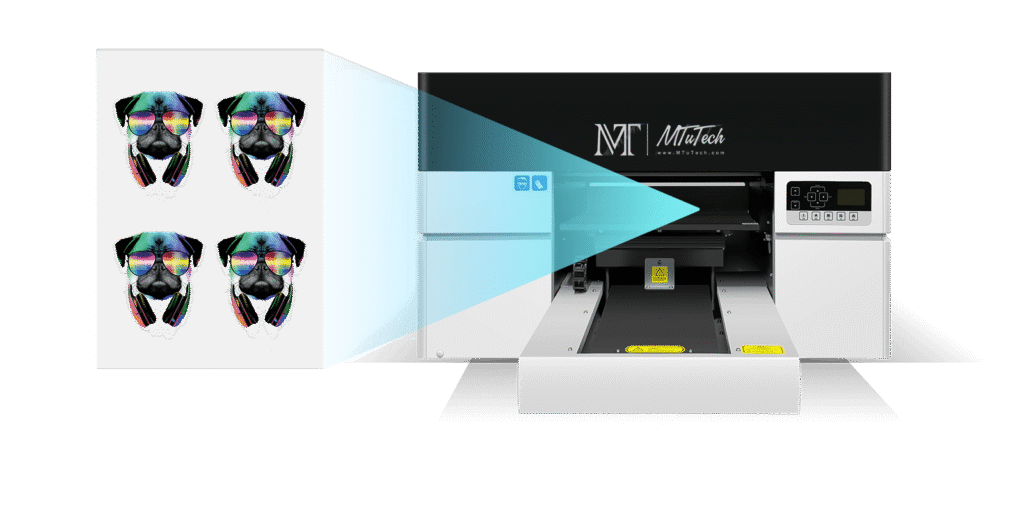

7: Simple Operation
One-click printing is extremely convenient to use. Direct output from your design software to work station for fast printing. Easy templating customization and compatibility.
Step 1
Select the item you want to print.
Step 2
Upload photos to the printer.
Step 3
Place the item on the print platform.
Step4
Wait a minute when printing.
Step 5
Take out the item.
8: Easy Maintenance
Keeping in mind that the system is for everyone, we design the machine especially for the maintenance replacement in modules.
297mm x 420mm
Printing Size

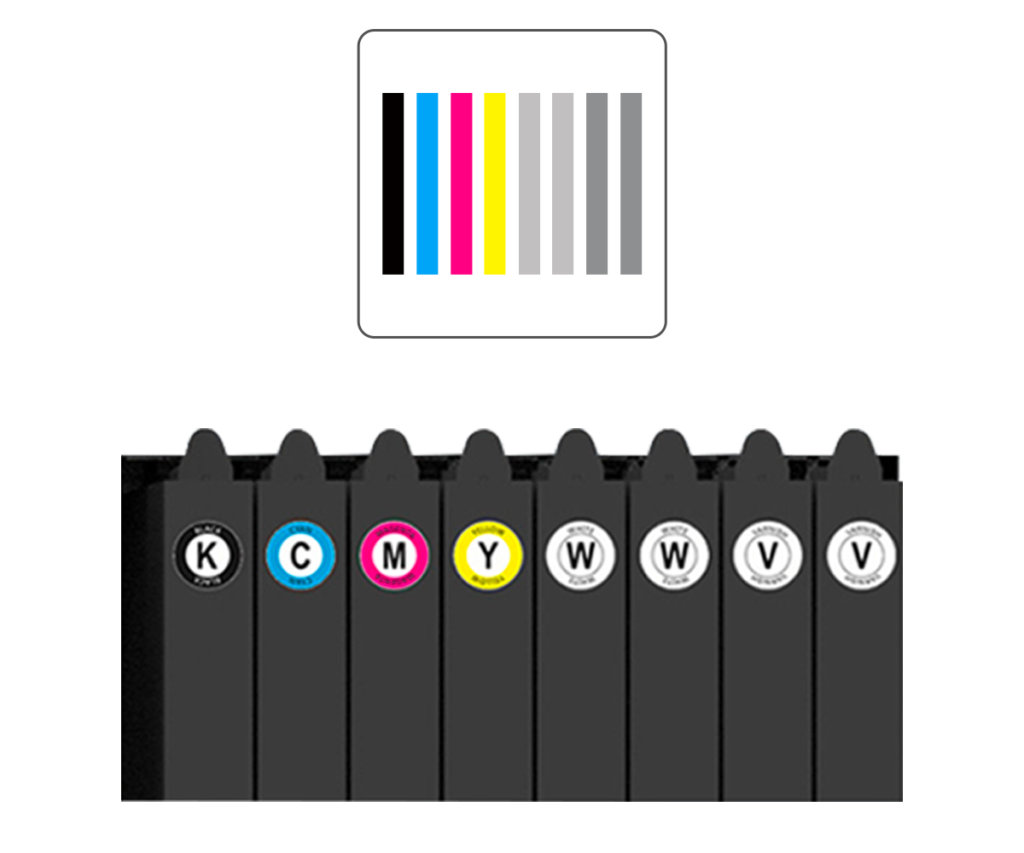

CMYK+W+V
Colors
1200dpi
Resolution
Ultimate Performer
A3 flatbed UV printer MT-UV A3MAX delivers technological innovation into the market faster and more successfully than anyone. The newest printhead for commercial and industrial flatbed UV printing machine models enables high-performance runs.

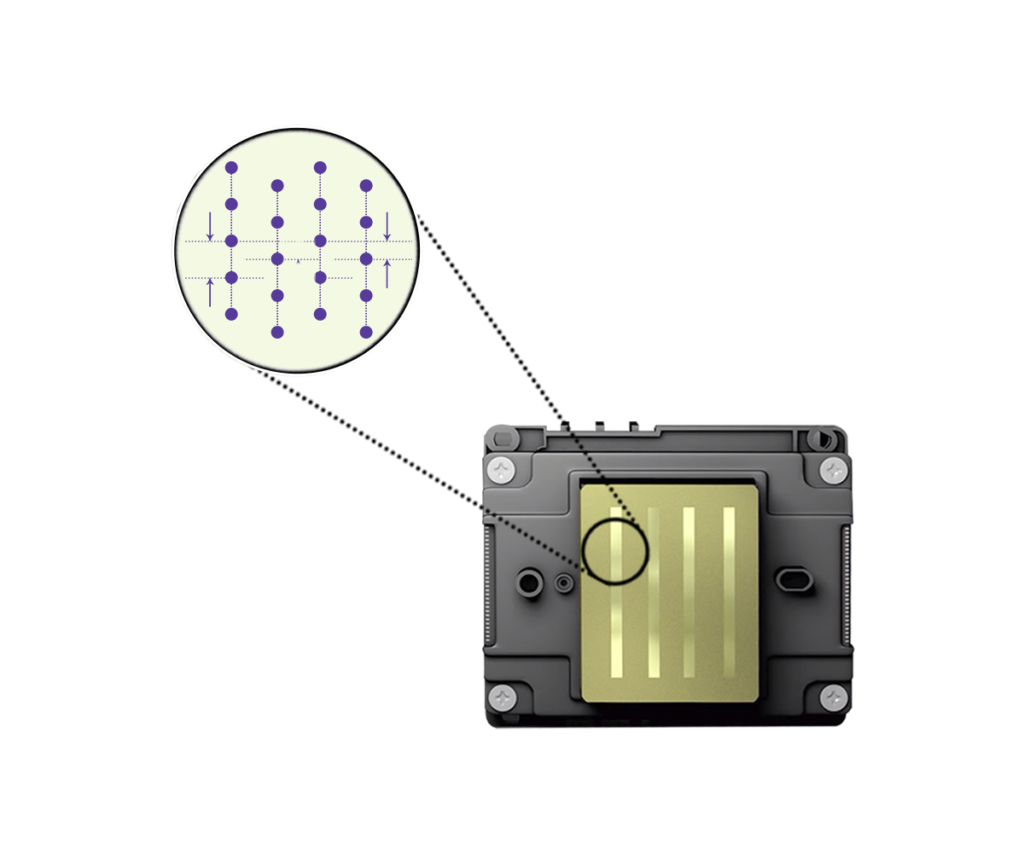

Printhead Technology
Epson i3200(8)-S1HD printheads feature with excellent durability, accuracy, and productivity, it can provide technical support in waveform optimization, ink compatibility testing, and printhead integration.
Product name
I3200(8)-S1HD
Head type
PrecisionCore
Compatible inks
UV-cured, oil, eco-solvent, solvent
Dimensions (width x depth x heigh)
69.1 x 59.5 x 36.7 mm
Total nozzles
3,200
Head resolution & number of inks that can be used
300 dpi with 8 colors,
600 dpi with 4 colors
1200 dpi with 2 colors
Effective printing width
33.8 mm (1.33 inch)
Ink recirculation
No recirculation
Launch
First half of the fiscal year starting April 2023
Maximize image quality and productivity with UV A3 series UV flatbed printer.

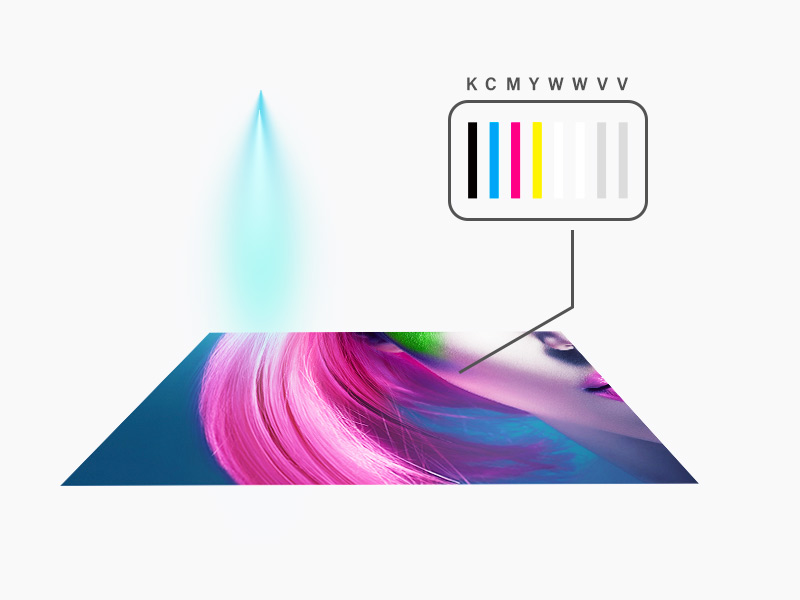

UV-LED Lamp Local Dimming Control Technology (LDC)
The LDC technology enables the ability to create diverse and expressive textures in the same print table movement. By dividing the irradiation area of the UV lamp, the varnish ink can be adjusted individually for greater segmented printing control. Glossy, semi-glossy and matte varnish effects can be produced in one table movement for prints combining CMYK + varnish or white + varnish.
The result is a substantial productivity boost as well as a minimized risk for graininess, banding, and misalignment of layer printing.

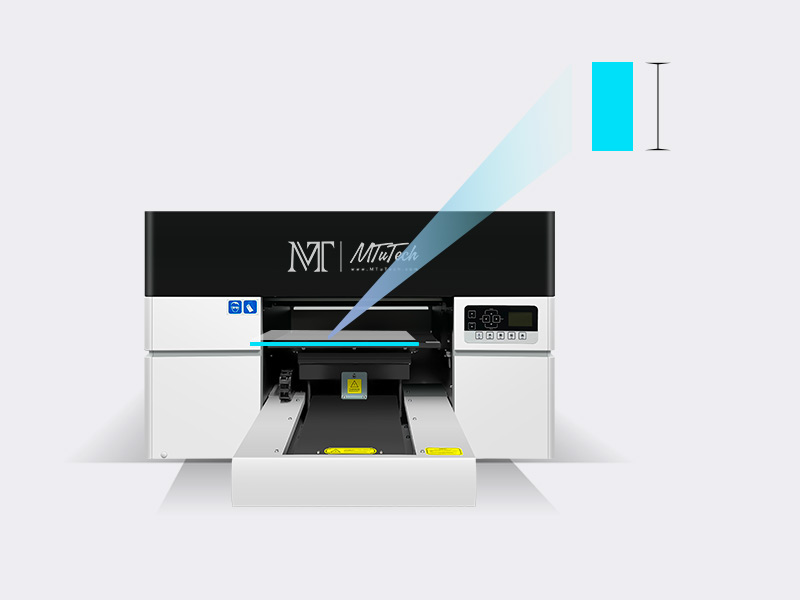

Flatbed Height Adjustment (Up to 0" - 3.75")
Print onto objects up to 3.75 inches thick easily with the Flatbed Height Adjustment function。

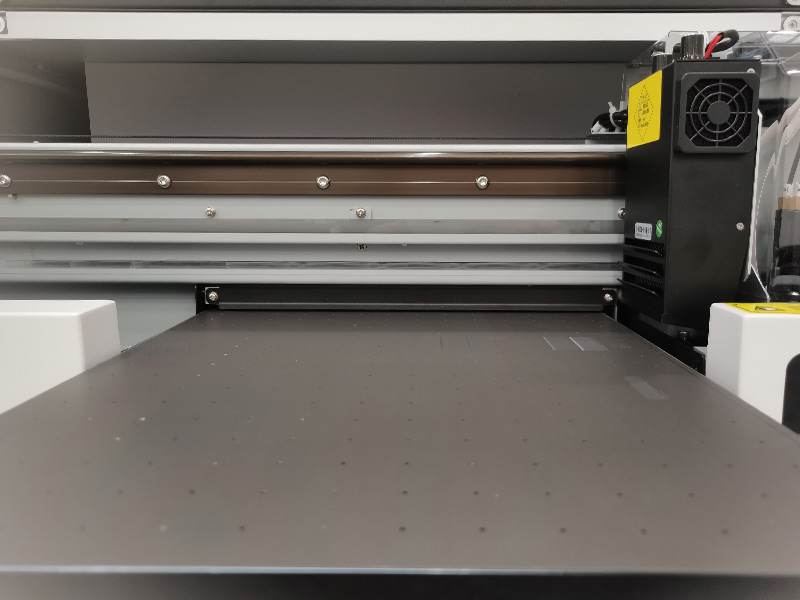

Anti-Shift Media Vacuum Table (Optional)
The optional anti-shift media vacuum table efficiently positions, holds down firmly and flattens out even thin media.
Braille and Raised Textures Printing Capability
Print tactile 2.5D graphics such as embossed text, braille, and textured decorations. The A3 UV-LED flatbed printer is ideal for premium 2.5D printing grater than 1mm thick. In addition, take full advantage of MT’s UV ink using CMYK + White + Varnish to quickly and easily print braille and raised icons.

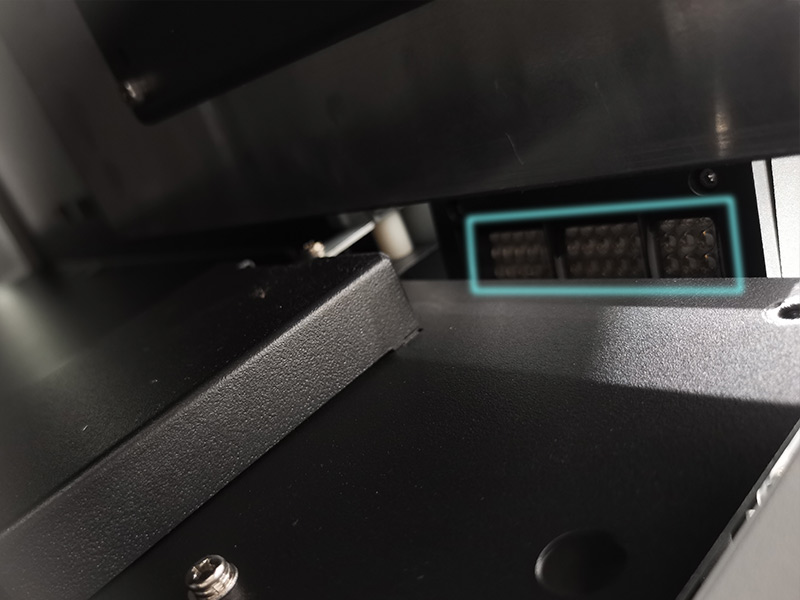

New and Improved Printer Maintenance System for UV-LED Lamps
The maintenance environment around the UV-LED lamp has been redesigned and improved to perform daily maintenance more efficiently. The UV led lamp is uniquely designed with a 15-degree inclination to protect the nozzle from UV light and prevent the nozzle from being blocked. In addition, a new printhead improves jetting stability and minimizes printer issues.

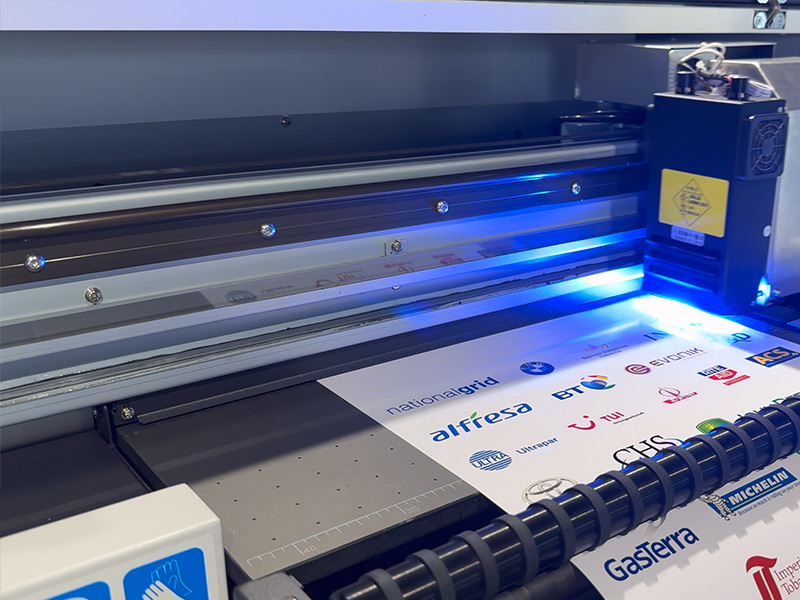

Obstacle Detection System
Mtutech’s obstacle detection system can pause and resume printing after the sensor detects any obstacle resulting in fewer media loss.
Printing Size
Resolution
Ink
Print Media
Rigid Printing Offers Endless Possibilities
MTuTech A3 UV printer, offers both professional direct-to-object printing and direct-to-film printing capabilities onto a huge range of items and substrates.
It meet two requirements and support flat and roll printing. Print directly onto flat rigid substrates such as wood, glass, acrylic, MDF, foam board, poster board, etc. Also performs well on cylinder or sphere surface printing, such as golf ball,bottle, tumblers, etc.
In addtion, it’s a kind of uv dtf printer as well. You can print directly onto an adhesive film, laminate it, and then apply it like a high end sticker to just about anything. No limit for branded items, signage, roll labels, stickers, personalized gifts, and various promotional items printing.
This will be an ideal UV DTF printer you are looking for.
Lightweight Design, Versatile Model
Small footprint, compact body. High-resolution A3 UV printer – entry level A3 desktop flatbed, which can print for branded items, signage, roll labels, stickers, personalized gifts, and various promotional items.
Ricoh Gen6 Print Heads
Feature variable ink droplet technology, ink droplet size as small as 5pl, high production capacity, high precision and high ink adaptability.
1 of 6Electrostatic Rod
It can effectively solve the problems of static electricity and dust generation in the production process.
2 of 6Carriage Anti-Collision System
The carriage will stop immediately when it encounters any object during printing, which effectively protects the carriage and print heads in time.
3 of 6Printing Platform
The platform is equipped with 30 supporting points as standard, which is twice that of ordinary printers. This ensures better platform stability.
4 of 6Linear Maglev Motor
Provides High precision, high speed, high thrust, ultra-quiet and a long service life.
5 of 6Computer Stand
Comfortable use and ergonomic. The participation of human-machine design concept obtains a comfortable computer experience.
6 of 616 Years
Smart Manufacturing Co., Limited, a subsidiary of Honson Group, is based on the intelligent industrial digital inkjet printing industry and has 16 years of independent research and development experience. Our company is an All-in-one industrial printing solution provider integrating R&D, production, sales and service.
MTuTech is committed to providing a complete set of intelligent digital printing solutions for household appliances, 3C, furniture, home improvement, packaging, electronic device cases, handicrafts, leather goods and many other industries. We also provide customized printing solution consultation, OEM/ODM, product training, equipment maintenance and other services. We are committed to becoming a world-class supplier of industrial printing solutions.
5S Management Systems
Our manufacturing facility adopts 5S-level management standards: Sort (SEIRI), Straighten (SEITON), Shine (SEISO), Standardize (SEIKETSU), and Sustain (SHITSUKE).
The 5S management system originated from Japan, the corresponding 5S refers to Sort, Straighten, Shine, Standardize, Sustain and other related production factors such as materials, equipment, and personnel at the manufacturing site. This system lays the solid foundation of management practices that guarantee for the rapid improvement of product quality and even success in the global market.
The purpose of implementing 5S management:
(1) The opportunity for employees to make mistakes and chances of defective products are greatly reduced and quality is greatly improved;
(2) It Improves morale;
(3) Avoids unnecessary wait times and searches, improving work efficiency;
(4) Resources can be reasonably allocated and used thus reducing waste;
(5) The clean working environment impresses customers and improves the overall image of the company;
(6) Passages are unobstructed, all signs and markings are clear and conspicuous and thus helping to ensure personal safety;
(7) Lay the foundation for the smooth development of other management practices.
Obtained ISO9001
In order to ensure that products meet the quality requirements for stable and long term use, customers have required suppliers establish a quality control system according to the ISO9001 quality management standard that they need to get certified to. The applicant uses the proven quality management system to ensure that the supplied products meet specified requirements and are stable. It is impossible to have stable product quality by only doing product sampling inspections.
Implementing the ISO9001 quality management system standard is determined by the basic principles of it, which will greatly reduce or eliminate substandard products, thereby significantly reducing product costs and improving economic benefits.
Implementing the ISO9001 quality management system standard means standardizing the quality management of the enterprise, having clear responsibilities for each worker, eliminating waste, greatly improving work efficiency and freeing up time for senior management.
Once a company has passed the quality assurance system certification, it proves that the company has established and effectively implemented the quality assurance system in accordance with the ISO9001 quality assurance standards and has achieved integration. The company has sufficient quality assurance capabilities to meet customer requirements, thus gaining customers’ trust. Expanding the visibility of the enterprise, promoting the development of the business, and greatly increasing sales of their products.
Passing the ISO9001 quality management system standard, the enterprise has presented its quality assurance ability to meet the customer’s requirements on the one hand and on the other obtains the customer’s trust, increasing its popularity, which can significantly expand domestic market share. At the same time, from the ISO9001 quality management system certification in our country, mutual international channel recognition open up for the products of the certified company to enter the international market. Most foreign customers clearly require suppliers to pass ISO9001 quality management system certification when conducting business negotiations.
In short, implementing the ISO9001 quality management system standard and passing the certification process is essential for growth and development of the enterprise, as well as meeting the requirements of customers and the need for products to smoothly enter the international market.
Smart Flatbed UV Printer
The technology-leading intelligent flatbed UV printing machine mode greatly saves manpower and improves printing efficiency, leading to less waste and fewer costly mistakes which, in turn, leads to better overall margins and faster turnaround times.
UV A3MAX Specifications
Dimensions
Flatbed Size
420mm*297mm
Media Thickness
0~95mm
Dimensions and Weight
Dimensions (L×W×H)
1000mm×902mm×592mm(±10mm)
Weight
60 kg
Colors
CMYK √
Light cyan, light magenta √
White √
Varnish √
Printhead
Epson i3200-S1 HD Printheads
Resolution
Up to 1200dpi
Inks
Integrated ink supply
2 litre containers
UV-curable inks √
Wide color gamut √
Environmental friendly, VOCs Free √
Superb durability √
Installation Environment
Power Specification
AC220/110 ±10, 50~60 Hz
Operating Temperature
20°C~28°C
Relative humidity
35%~65% RH
UV A3MAX Specifications
Flatbed Size
420mm*297mm
Media Thickness
0~95mm
Dimensions (L×W×H)
1000mm×902mm×592mm(±10mm)
Weight
60 kg
CMYK √
Light cyan, light magenta √
White √
Varnish √
Varnish √
Epson i3200-S1 HD Printheads
Resolution
Up to 1200dpi
Integrated ink supply
2 litre containers
UV-curable inks √
Wide color gamut √
Environmental friendly, VOCs Free √
Superb durability √
Power Specification
AC220/110 ±10, 50~60 Hz
Operating Temperature
20°C~28°C
Relative humidity
35%~65% RH
