UV Printer 9060
Ideal solution for promotional items printing business
900mm x 600mm
Printing Area
3pcs Epson i3200 Printheads
Printhead
45mm~110mm
Print Diameter
180mm
Max. Print Height

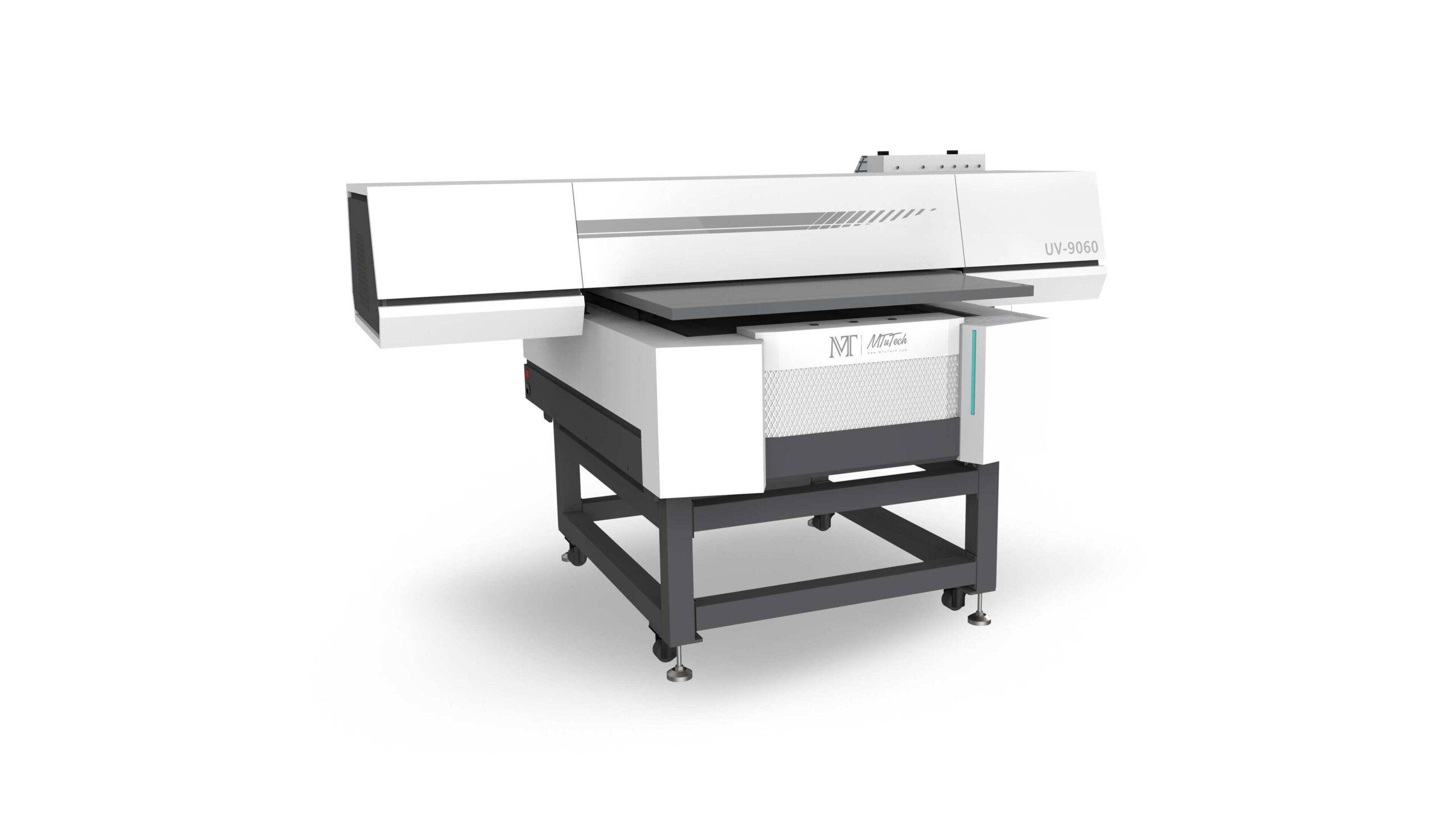

Meet UV 9060 Flatbed UV Printer
Key Features
Prepare to start generating huge profits on personalized and mass produced products with our factory price 35.4”x23.6” UV flatbed printer 9060. The ultimate in printing versatility, users can simply create top-quality rigid, medium and soft products.
Offer direct to surface (object) printing capability
Offer UV direct to film printing capability
Rotary Attachment
Integrated Aluminum Frame
Printer Ink Cartridges
Continuous Ink System
Air-cooled UV Lamp
Platform
CMYK+W+V
Colors
180mm
Max Print Height
15 sqm/h
Speed
Ultimate Performer
Flatbed UV printer 9060 delivers technological innovation into the market faster and more successfully than anyone. The newest printhead for commercial and industrial flatbed UV printing machine models enables high-performance runs.

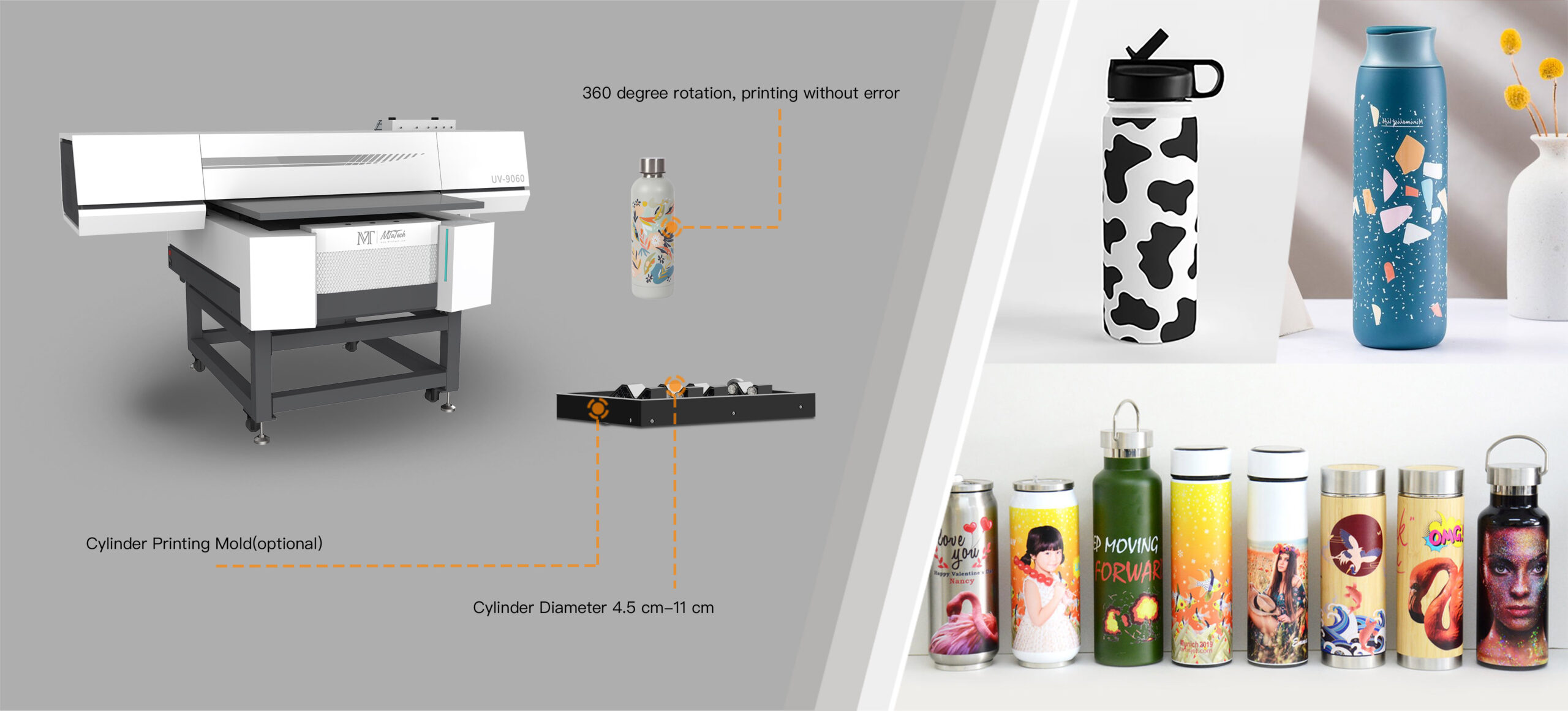

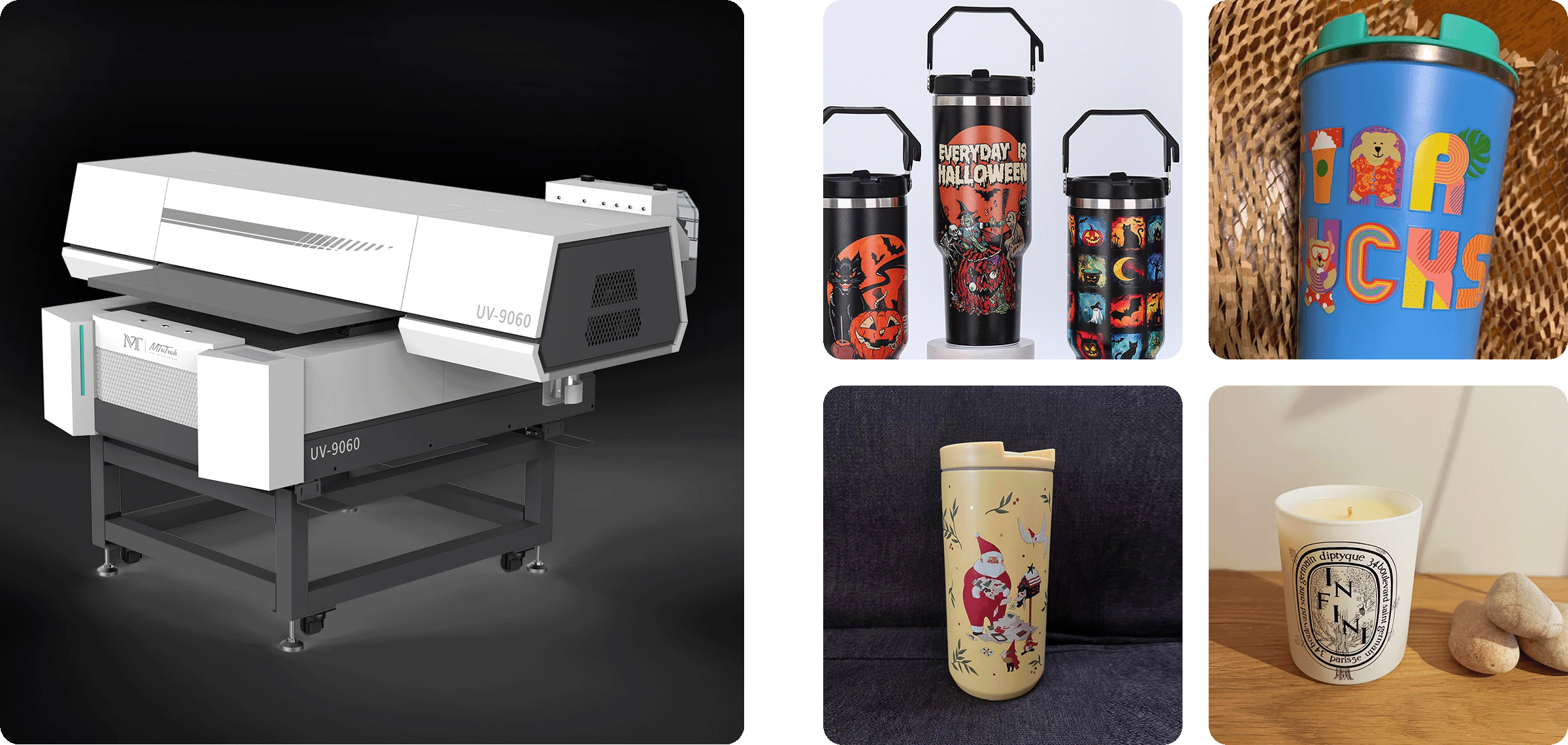

Printing On Cylinder Objects
Help you explore more possibilities

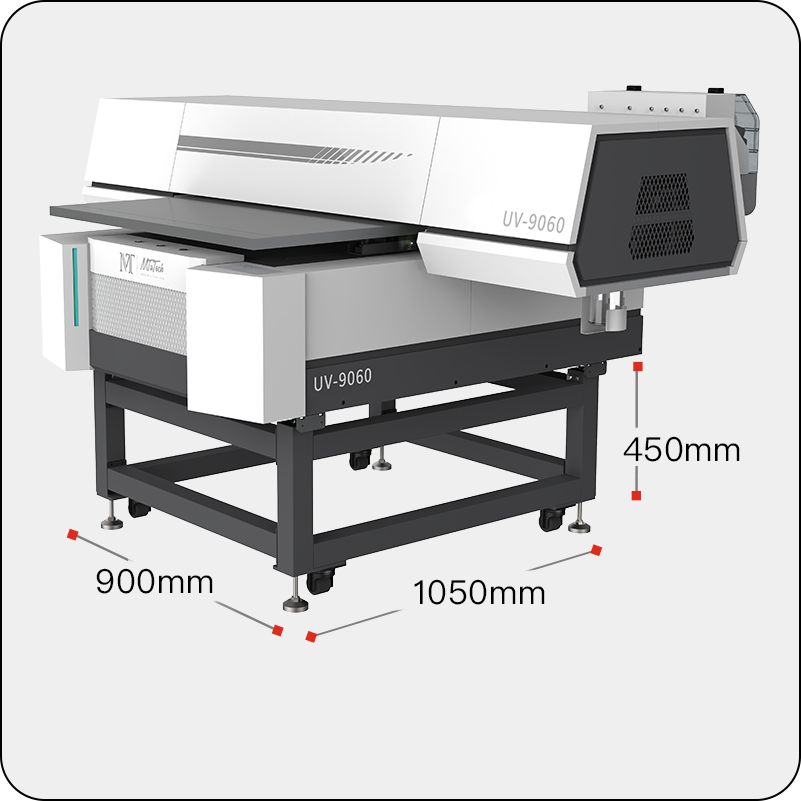

Size of Objects to be Printed on
MT-UV 9060 is the smallest UV printer produced by MT and features a flatbed size of 900mm by 600mm and a printing height of 180mm. For this reason, the MT-UV 6090Pro is only designed for printing on smaller items. Objects to be printed on the MT-UV 9060 range from small keychains, lighters, metal tags, and puzzle pieces to larger materials like basketballs, speakers, and other materials that can fit comfortably into the printer.It is important to remember the printer’s printing height when considering the size of the item to be printed on and to ensure that it does not exceed the printer’s printing height of 180mm. Make sure the material to be printed on is not a tight fit for the printer to prevent any reduction of print quality.The machine can only handle items with diameters between 45mm-110mm for tapered item printing.
Left 45 °
Right 45 °
Cylinder Diameter: 45mm-110mm

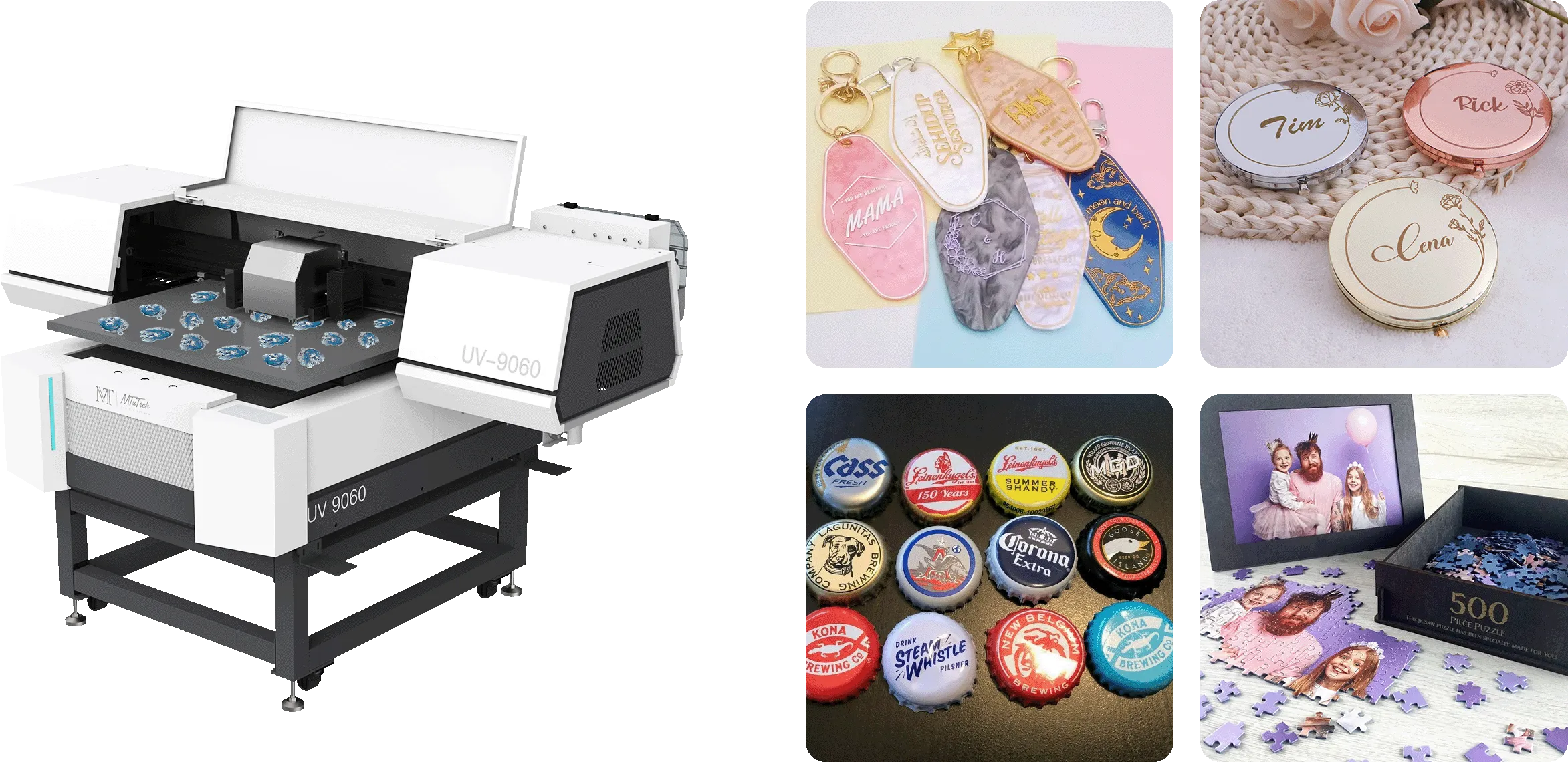

Printing On Flat Objects
Product Functions
UV printer 9060 comes with all you would expect from a professional UV printer and more.The printer comes equipped with the following features:
● Multi-Mode Printing
● Advanced Noise Reduction Technology
● Variable Ink Drop Technology
● Automatic White Ink Mixing
● Automatic Cleaning
● Intelligent Control Technology
● Multiple Material and Ink Compatibility
● Multi-Mode Printing
Multi-mode printing technology allows various printing operations, Including variable grayscale printing, And multi-layer printing. This provides you with multiple printing styles for a broader range of applications and greater design implementation.
Glass
Ceramic tile
Metal
Wood
● Advanced Noise Reduction Technology
Advanced Noise Reduction Technology Advanced noise reduction technology on the iMaxcan UV printer 6090 allows for a more silent printing experience. This provides a noise-free work environment that improves workplace conduciveness and the overall atmosphere.
● Variable Ink Drop Technology
Variable ink drop technology allows the 9060 to vary the size of ink applied at any given point in the printing process. This variation in ink size allows a more controlled printing process to produce detailed designs and prints, creating accurate designs even in smaller images. Epson’s unique Variable Sized Droplet Technology(VSDT) delivers smooth gradation by freely control to eject the droplet volume. Variable Ink Drop Technology All MEMS manufacturing and thin film piezo element can realize high precision and high density(600Dpi / 2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality.Precision made of Epson unique MEMS nozzles and an ink flow path ensure the per fectly round ink droplets are placed accurately and consistently.
Variable - dot
Fixed - dot
● White Ink Mixing
UV printer 9060 comes equipped with white ink mixing technology that prevents the printhead from getting blocked by precipitated ink.
● White Ink Mixing
UV printer 9060 comes equipped with white ink mixing technology that prevents the printhead from getting blocked by precipitated ink.
● White Ink Mixing
UV printer 9060 comes equipped with white ink mixing technology that prevents the printhead from getting blocked by precipitated ink.
● Multiple Material and Ink Compatibility
Compatible with various materials and inks, UV printer 9060 is equipped to handle practically all flatbed printing and can be used to print on any material and surface.

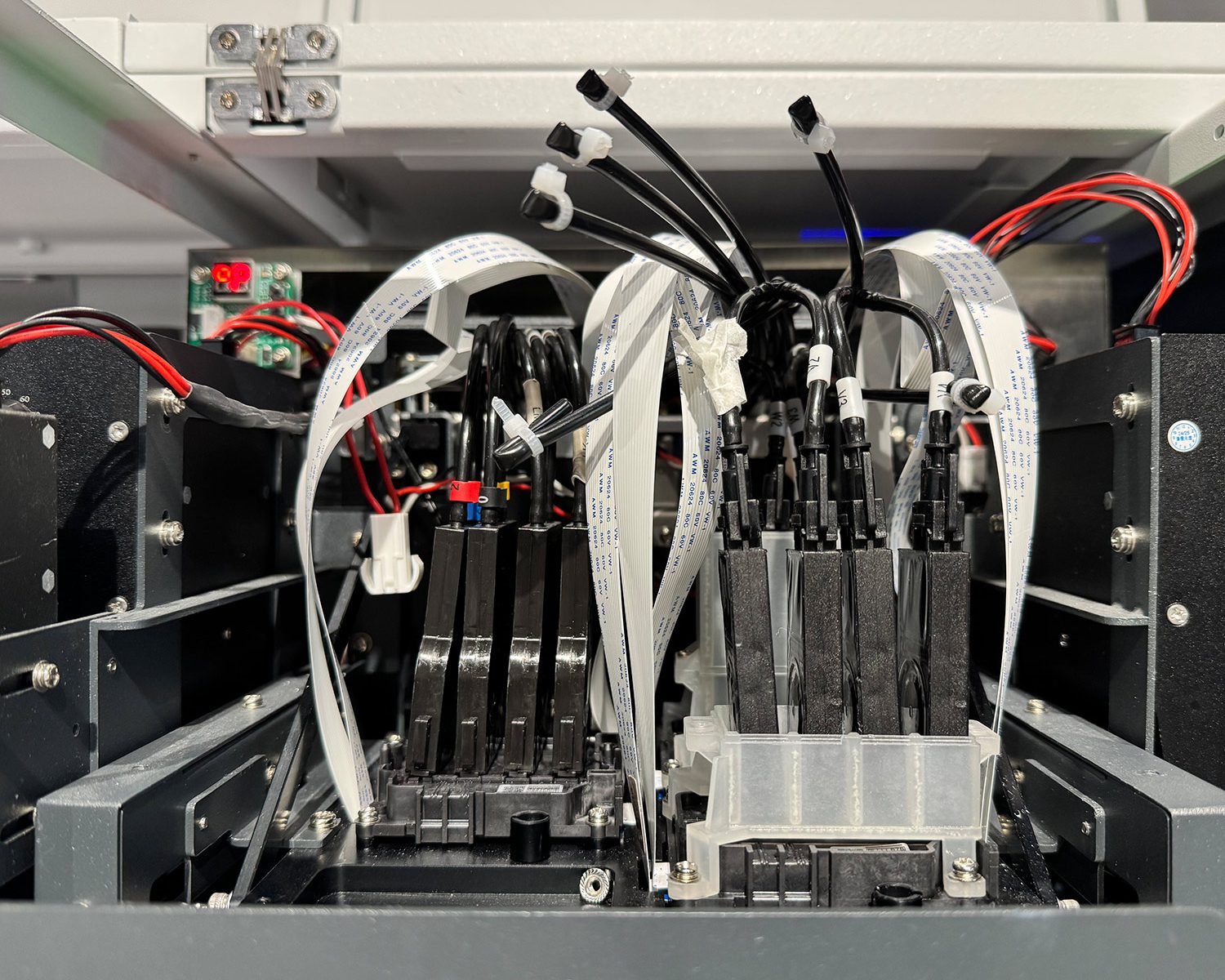

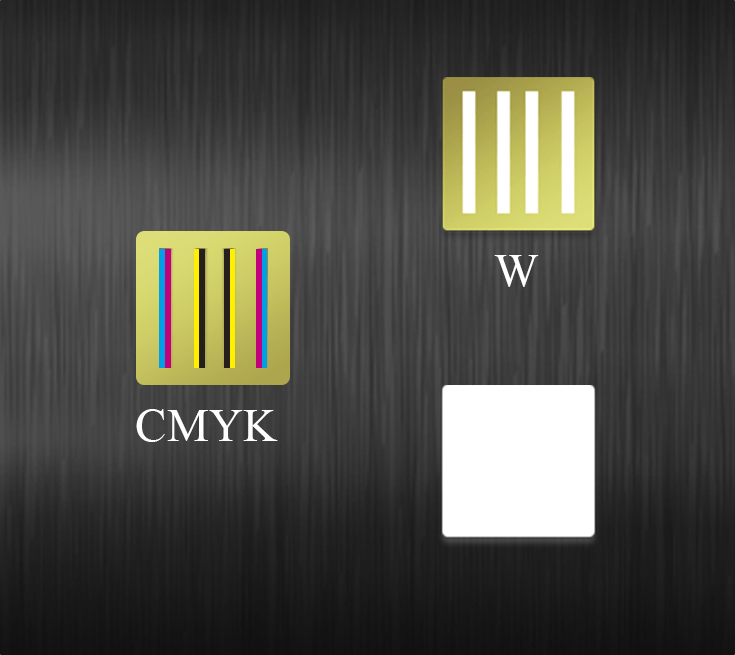

Using two Epson i3200 print heads, UV printer 9060 can print high-quality images substantially faster. Two print heads are used for the conventional CMYKW inks, leaving the remaining four print heads open to any mix of Varnish to meet your unique requirements.
The large ink tank accompanies the printing process, resulting in a self-agitating system that reduces setup time and makes the start-up process easier. Each 500 mL large ink tank is made to function as a closed ink system and as a bulk ink solution.
W+CMYK+V
White – For printing on transparent or black materials,using white as the base color is ideal.
Varnish – can be printed on part or all of the surface of the material to produce visual and tactile effects.
W+CMYK
White – For printing on transparent or black materials,using white as the base color is ideal.The embossed effect can also be achieved by multi – layer printing with white ink.
CMYK
High fidelity color,realistic and delicate pictues.
The Highlights of UV printer 9060

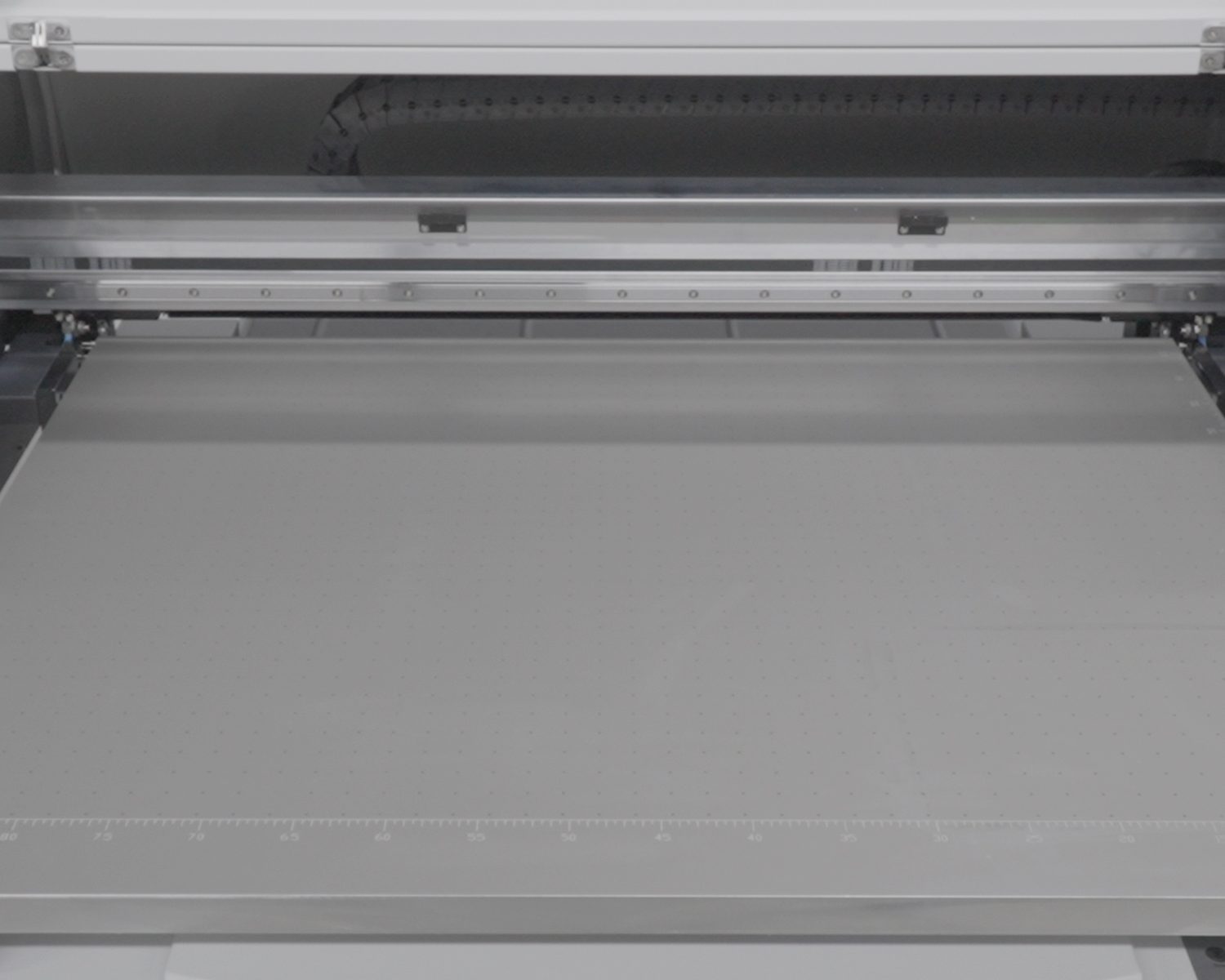

1: Vacuum Bed
The vacuum bed is the most crucial configuration of the MT-UV 6090Pro to guarantee the perfect planarity and keep the print material flat. Thanks to that, you’ll get a consistent and perfect print for your project, even if you print the light, thin material like foam core and corrugated plastic, etc.

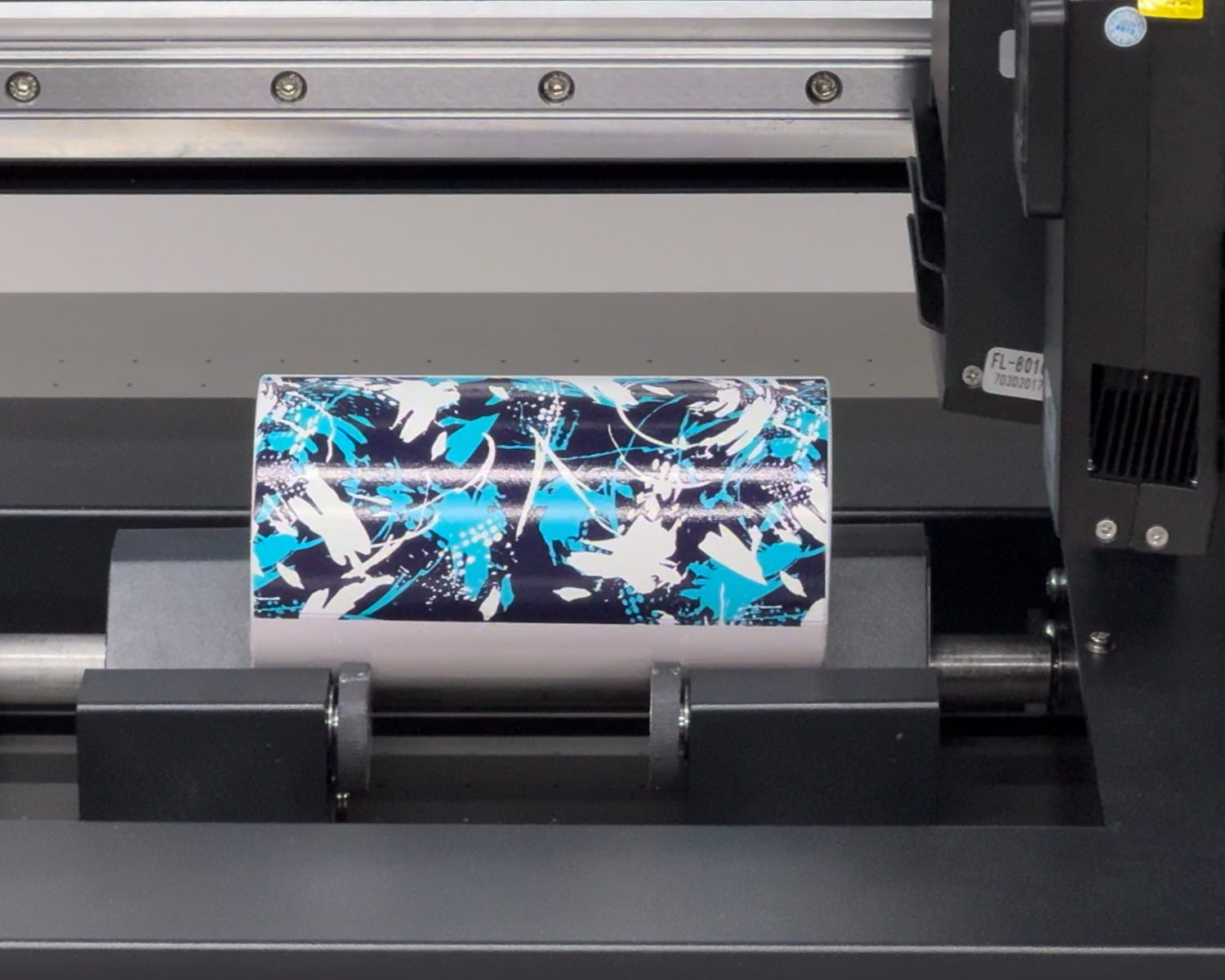

2: Flexible Option for Rotary Attachment
Creating an accurate print on a cylinder surface is pretty simple with UV printer 6090. A special rotary attachment is required for cylindrical item printing.
We provide a variety of printing attachments, making it so easy to print various gift and promotional items. No obstacles at all!
3: Automatic Media Height Adjustment
This setting allows the height to be readjusted automatically to continue printing even when the object to be printed on moves out of position or lifts up and comes into contact with the head gap sensor during printing.
4: Compatible Ink System
Our compatible ink system means you can control what kind of inks you use flexibly, rather than being limited to the machine itself. The result is that you control your ink cost always and reduce your costs in the final.
We supply high-quality and cost-effective LED UV ink you need. All the ink has passed strict tests, and we provide customized standard ICC and wave files to support you get superb print quality.
5: Print Height and Print Diameter
Maximum Print Height：180mm(7”)
Print Diameter: 45 mm ～ 110 mm(1.77”-4.33”)
Custom cylindrical gifts and promotional items ! You can add the rotary jig to your UV printer 6090 for customizing and huge demand projects, such as custom tumblers, travel cup, sports ball,etc.
6: No Installation Required , Full Controled by Software
While not strictly a feature of UV printer 9060 itself, we use professional mini UV Photoprint RIP software developed by SAI, which takes the printer’s capabilities up a notch.
The concept of simple design and user-friendly are fully reflected in this UV printer machine. No installation required before you use it. Even if you are fresh for uv printing industry, you can master and operate it with ease.
Maximize image quality and productivity with UV 9060 series UV flatbed printer.

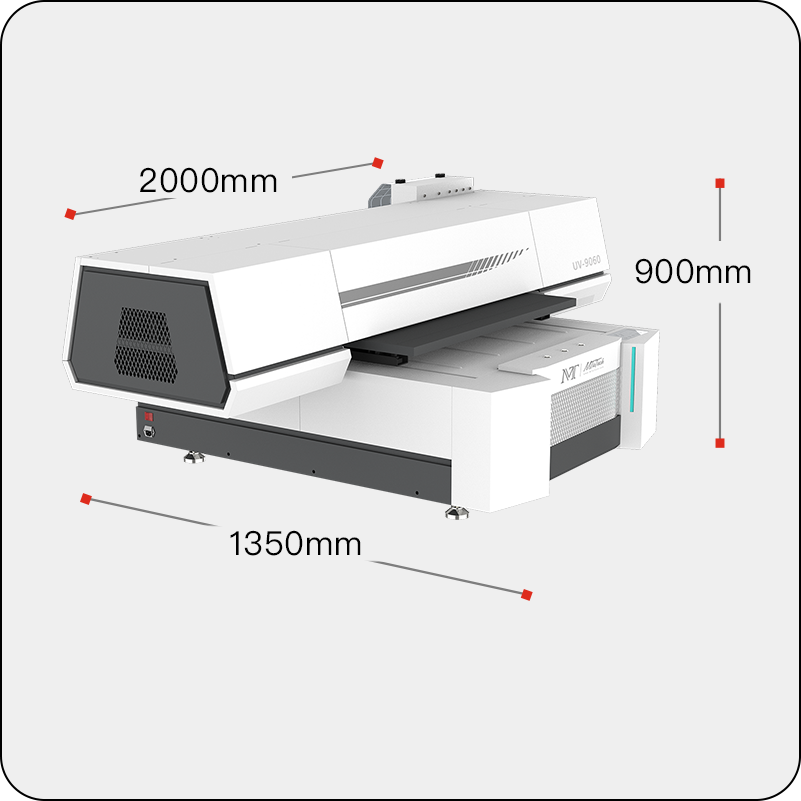

Printing Size
Max Print Height
Print Diameter
Print Media
Rigid Printing Offers Endless Possibilities
UV printer 9060, offers both professional direct-to-object printing and direct-to-film printing capabilities onto a huge range of items and substrates.
It meet two requirements and support both flat and cylinder surface printing. Print directly onto flat rigid substrates such as wood, glass, acrylic, MDF, foam board, poster board, etc. Also performs well on cylinder or sphere surface printing, such as golf ball,bottle, tumblers, etc.

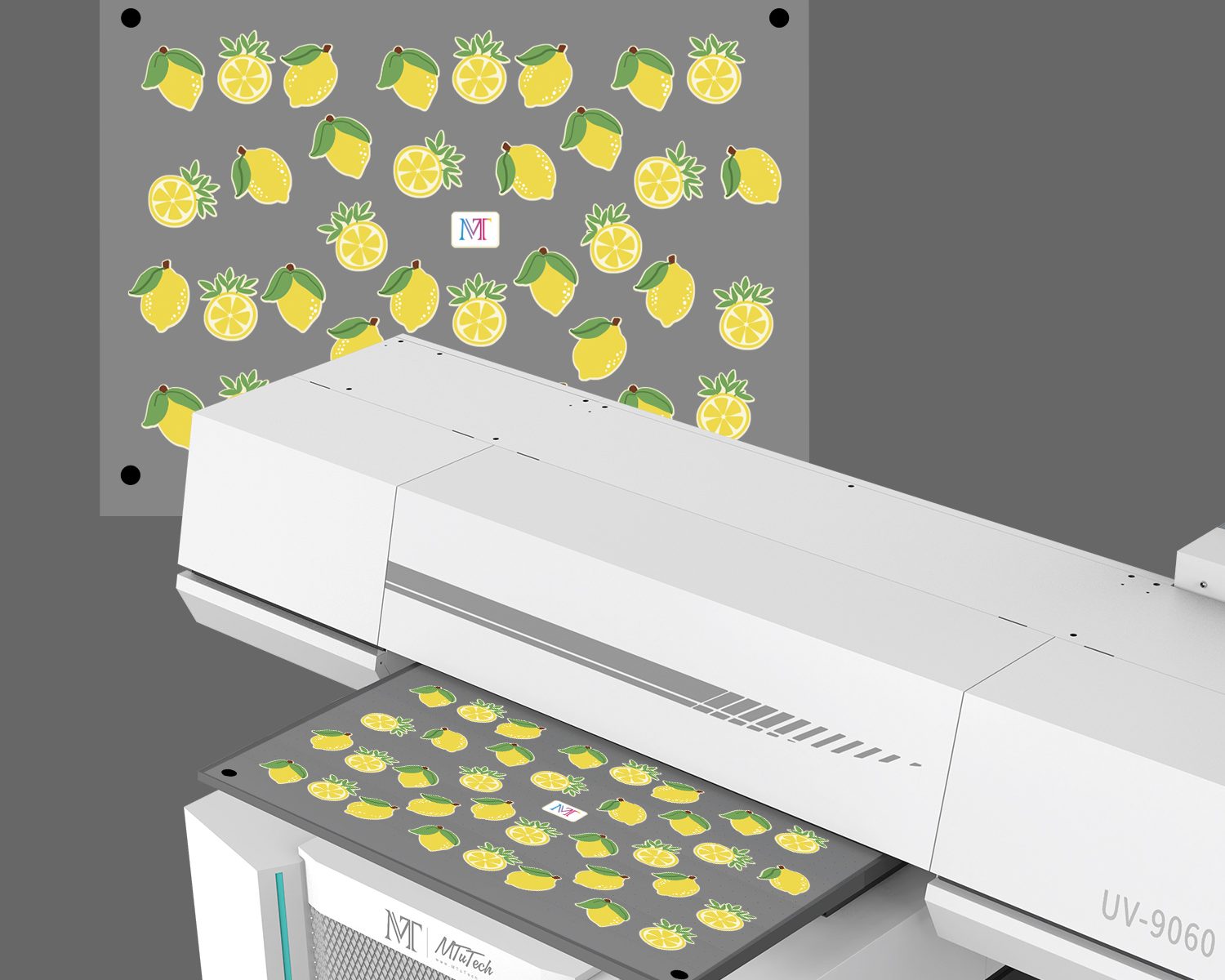

In addtion, it’s a kind of uv dtf printer as well. You can print directly onto an adhesive film, laminate it, and then apply it like a high end sticker to just about anything. No limit for branded items, signage, roll labels, stickers, personalized gifts, and various promotional items printing.
This will be an ideal UV DTF printer you are looking for.

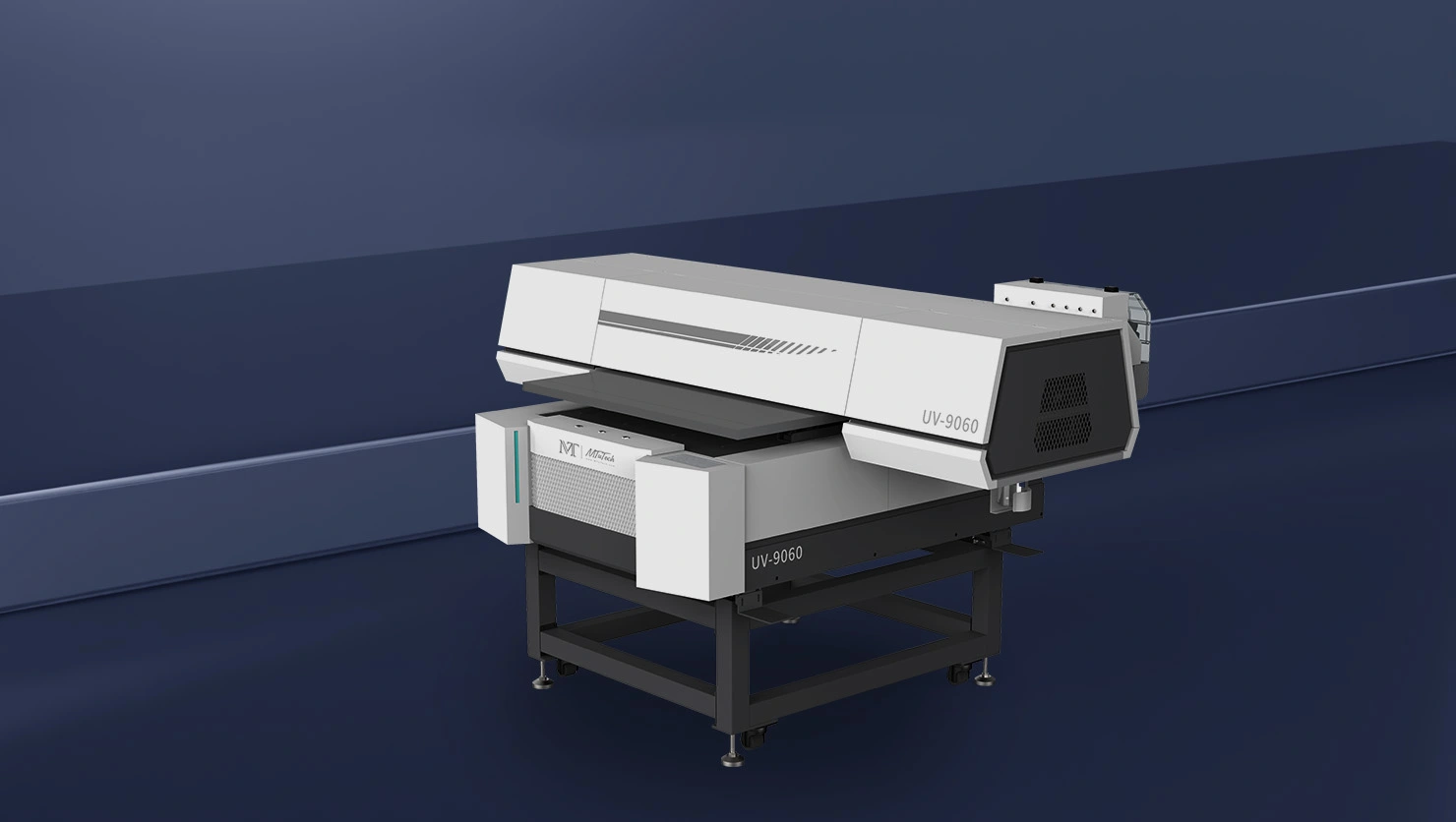

Lightweight Design, Versatile Model
Small footprint, compact body. High-resolution A1 UV printer 9060, which can print for branded items, signage, roll labels, stickers, personalized gifts, and various promotional items.
It’s an affordable solution for businesses wanting to get started in the fast-growing market for personalised print and bespoke goods and services. The perfect choice for high quality printing on wood, acrylic, aluminium, glass and many other substrates.High resolution high speed full colour printing allows you to print company logos and small text on promotional items. Customized printing on watch dials, instrument panels etc.

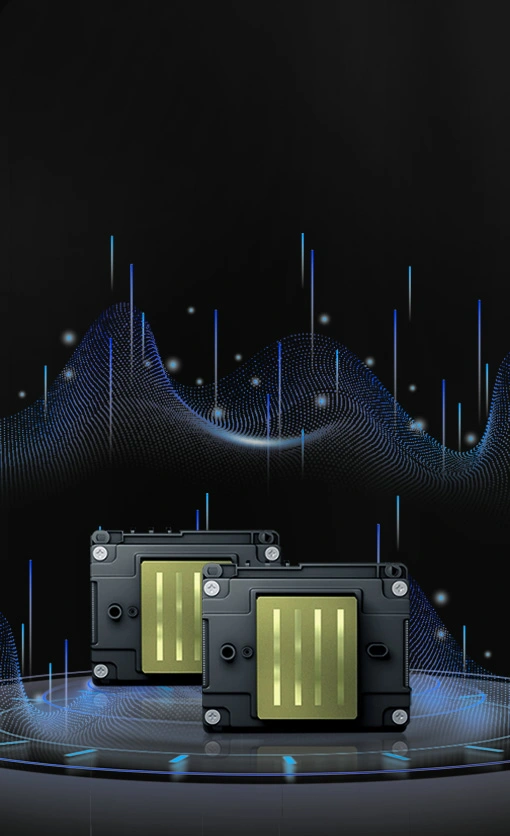

Epson i3200 Printheads
Feature variable ink droplet technology, ink droplet size as small as 3.5pl, high production capacity, high precision and high ink adaptability.

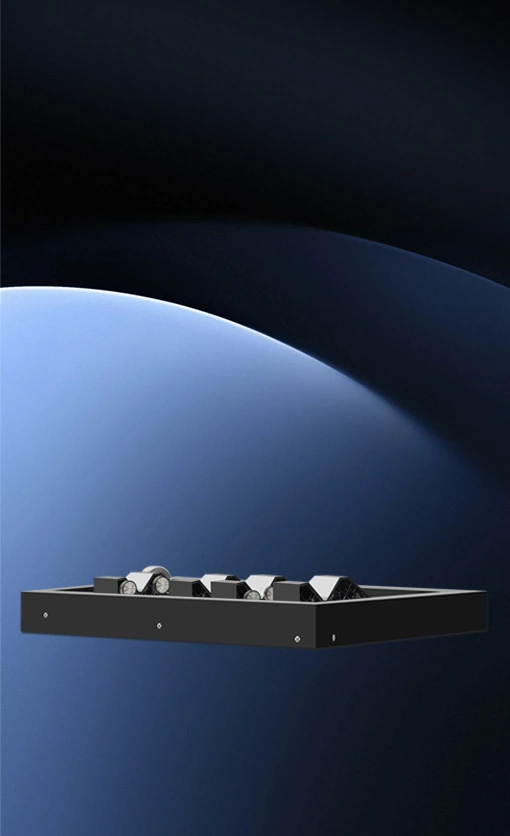

1 of 7Cylinder Printing Mold (optional)
Printing On Cylinder Objects，360 degree rotation,
printing without error.
High-precision Aluminum Alloy Vacuum Platform
Use Vaccum Pump to provide sucktion for media during printing, make sure high precision printing.
3 of 7Fashion Appearance
Red And Black Color Scheme Simple Design
4 of 7THK Guide Rails
Imported Japanese THK guide rails provide increase stability, precision and reduced noise when printing.
5 of 7Simple And Efficient Execution
The 6090 series contains many advanced features to simplify high-quality print jobs.
6 of 7Computer Stand
Comfortable use and ergonomic. The participation of human-machine design concept obtains a comfortable computer experience.
7 of 716 Years
Smart Manufacturing Co., Limited, a subsidiary of Honson Group, is based on the intelligent industrial digital inkjet printing industry and has 16 years of independent research and development experience. Our company is an All-in-one industrial printing solution provider integrating R&D, production, sales and service.
MTuTech is committed to providing a complete set of intelligent digital printing solutions for household appliances, 3C, furniture, home improvement, packaging, electronic device cases, handicrafts, leather goods and many other industries. We also provide customized printing solution consultation, OEM/ODM, product training, equipment maintenance and other services. We are committed to becoming a world-class supplier of industrial printing solutions.
5S Management Systems
Our manufacturing facility adopts 5S-level management standards: Sort (SEIRI), Straighten (SEITON), Shine (SEISO), Standardize (SEIKETSU), and Sustain (SHITSUKE).
The 5S management system originated from Japan, the corresponding 5S refers to Sort, Straighten, Shine, Standardize, Sustain and other related production factors such as materials, equipment, and personnel at the manufacturing site. This system lays the solid foundation of management practices that guarantee for the rapid improvement of product quality and even success in the global market.
The purpose of implementing 5S management:
(1) The opportunity for employees to make mistakes and chances of defective products are greatly reduced and quality is greatly improved;
(2) It Improves morale;
(3) Avoids unnecessary wait times and searches, improving work efficiency;
(4) Resources can be reasonably allocated and used thus reducing waste;
(5) The clean working environment impresses customers and improves the overall image of the company;
(6) Passages are unobstructed, all signs and markings are clear and conspicuous and thus helping to ensure personal safety;
(7) Lay the foundation for the smooth development of other management practices.
Obtained ISO9001
In order to ensure that products meet the quality requirements for stable and long term use, customers have required suppliers establish a quality control system according to the ISO9001 quality management standard that they need to get certified to. The applicant uses the proven quality management system to ensure that the supplied products meet specified requirements and are stable. It is impossible to have stable product quality by only doing product sampling inspections.
Implementing the ISO9001 quality management system standard is determined by the basic principles of it, which will greatly reduce or eliminate substandard products, thereby significantly reducing product costs and improving economic benefits.
Implementing the ISO9001 quality management system standard means standardizing the quality management of the enterprise, having clear responsibilities for each worker, eliminating waste, greatly improving work efficiency and freeing up time for senior management.
Once a company has passed the quality assurance system certification, it proves that the company has established and effectively implemented the quality assurance system in accordance with the ISO9001 quality assurance standards and has achieved integration. The company has sufficient quality assurance capabilities to meet customer requirements, thus gaining customers’ trust. Expanding the visibility of the enterprise, promoting the development of the business, and greatly increasing sales of their products.
Passing the ISO9001 quality management system standard, the enterprise has presented its quality assurance ability to meet the customer’s requirements on the one hand and on the other obtains the customer’s trust, increasing its popularity, which can significantly expand domestic market share. At the same time, from the ISO9001 quality management system certification in our country, mutual international channel recognition open up for the products of the certified company to enter the international market. Most foreign customers clearly require suppliers to pass ISO9001 quality management system certification when conducting business negotiations.
In short, implementing the ISO9001 quality management system standard and passing the certification process is essential for growth and development of the enterprise, as well as meeting the requirements of customers and the need for products to smoothly enter the international market.
MTuTech Smart Flatbed UV Printer
The technology-leading intelligent flatbed UV printing machine mode greatly saves manpower and improves printing efficiency, leading to less waste and fewer costly mistakes which, in turn, leads to better overall margins and faster turnaround times.
UV 9060Pro Specifications
Dimensions
Printing Area
900mm × 600mm
Maximum Print Height
180mm
Dimensions and Weight
Dimensions (L×W×H)
1510mm×1600mm×740mm
Weight
1150 kg
Colors
CMYK+White and Varnish,Up to 8 Colors √
Productivity
Speed : 15 sqm/h
Resolution: 3200dpi
Inks
Integrated ink supply
2 litre containers
UV-curable inks √
Wide color gamut √
Environmental friendly, VOCs Free √
Superb durability √
Installation Environment
Power Specification
AC220V ±5%50~60 Hz
Operating Temperature
18°C~30°C
Relative humidity
30%~70% RH
iMaxcan UV 2513 Specifications
Printing Speed CMYK(Lc Lm)*3
Production mode: 110.4㎡/h
Standard mode: 65.7㎡/h
Quality mode: 48㎡/h
Printing Speed CMYK(Lc Lm)+W+V
Production mode: 36.8㎡/h
Standard mode: 21.9㎡/h
Quality mode: 16㎡/h
Configuration
Ricoh Gen6 Printheads
Resolution
Up to 1200dpi
CMYK √
Light cyan, light magenta √
White √
Varnish √
Integrated ink supply
2 litre containers
UV-curable inks √
Wide color gamut √
Environmental friendly, VOCs Free √
Superb durability √
Flatbed Size
(2500mm × 1240mm)±2mm
Media Thickness
0.1~100mm
Dimensions (L×W×H)
4556mm×2140mm×1450mm(±10mm)
Weight
1150 kg
Power Specification
AC220V ±5%50~60 Hz
Operating Temperature
18°C~30°C
Relative humidity
30%~70% RH
